63 99 201 Replacing halogen bulb for left or right fog lamp (up to 07/2004)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Depending on which halogen bulb (right or left side) is to be replaced, it is necessary to turn the front wheels to their full lock so that there is sufficient space available. See below:

Left bulb: Turn wheels to full left lock.

Right bulb: Turn wheels to full right lock.

Necessary Preliminary Tasks:

Detach front wheel arch trim in front area. Refer to 51 71 040 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH LINER .

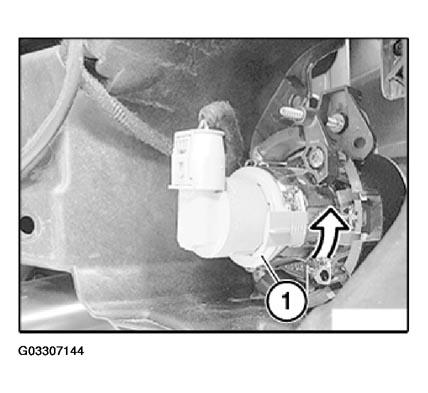

Turn lock in direction of arrow and remove bulb holder (1) towards rear.

Fig 1: View Of Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off halogen bulb for fog lamp (1).

Installation:

Make sure halogen bulb for fog lamp (1) is correctly seated.

Note type of bulb. Refer to LIGHTS - TECHNICAL DATA - COOPER (1.6L) R50/W10 .

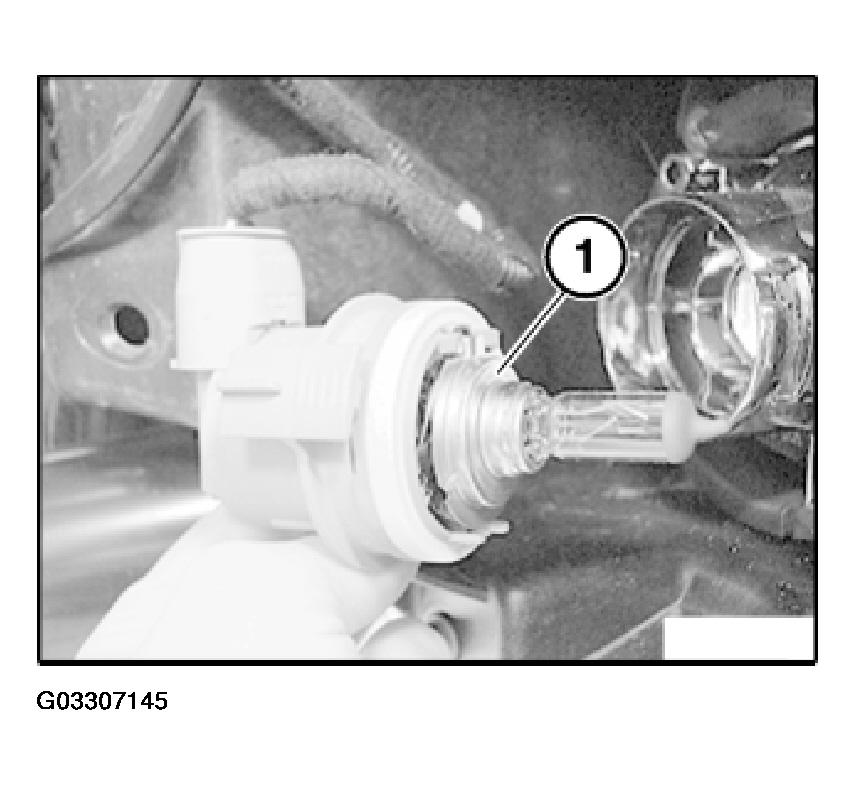

Fig 2: Identifying Fog Lamp Halogen Bulb

Courtesy of BMW OF NORTH AMERICA, INC.
