63 99 131 Replacing bulb for left or right front parking light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Turn bulb holder (1) in direction of arrow and remove towards rear from light (2).

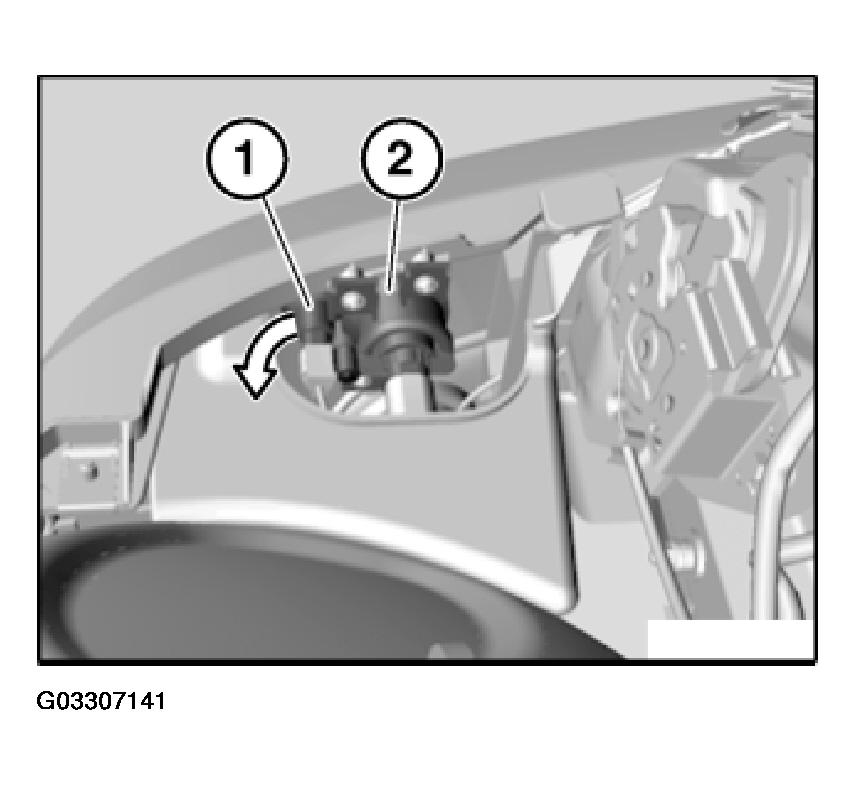

Fig 1: Locating Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bulb for front parking light (1) from bulb holder (2).

Installation:

Note type of bulb. Refer to LIGHTS - TECHNICAL DATA - COOPER (1.6L) R50/W10 .

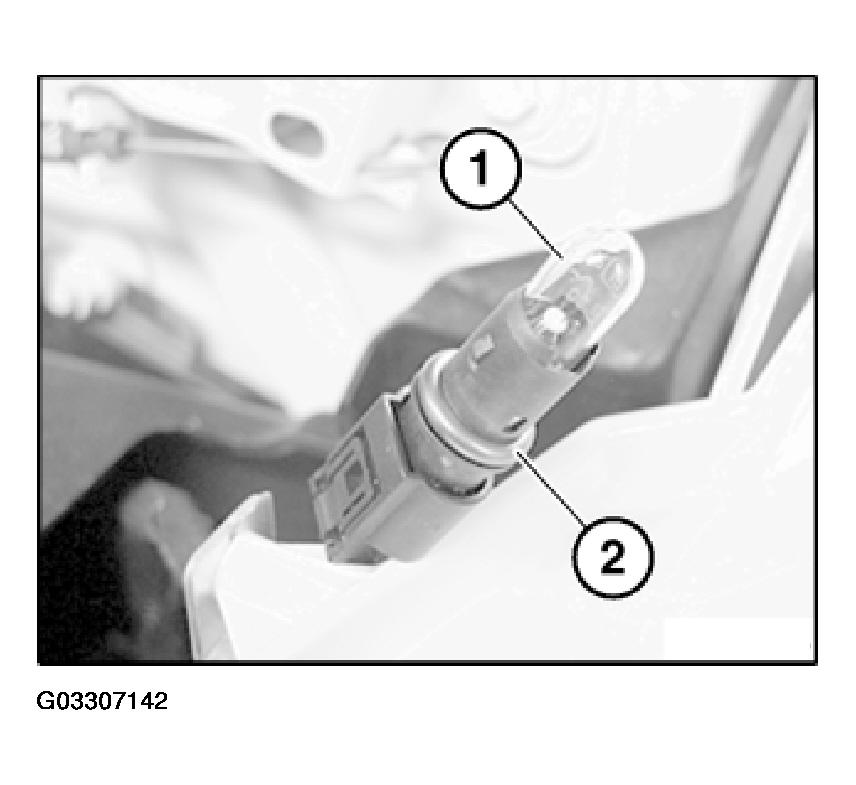

Fig 2: View Of Front Parking Light Bulb

Courtesy of BMW OF NORTH AMERICA, INC.
