63 99 078 Replacing bulb for left or right xenon headlight (up to 07/2004)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

NOTE: For purposes of clarity, illustration shows removed headlight.

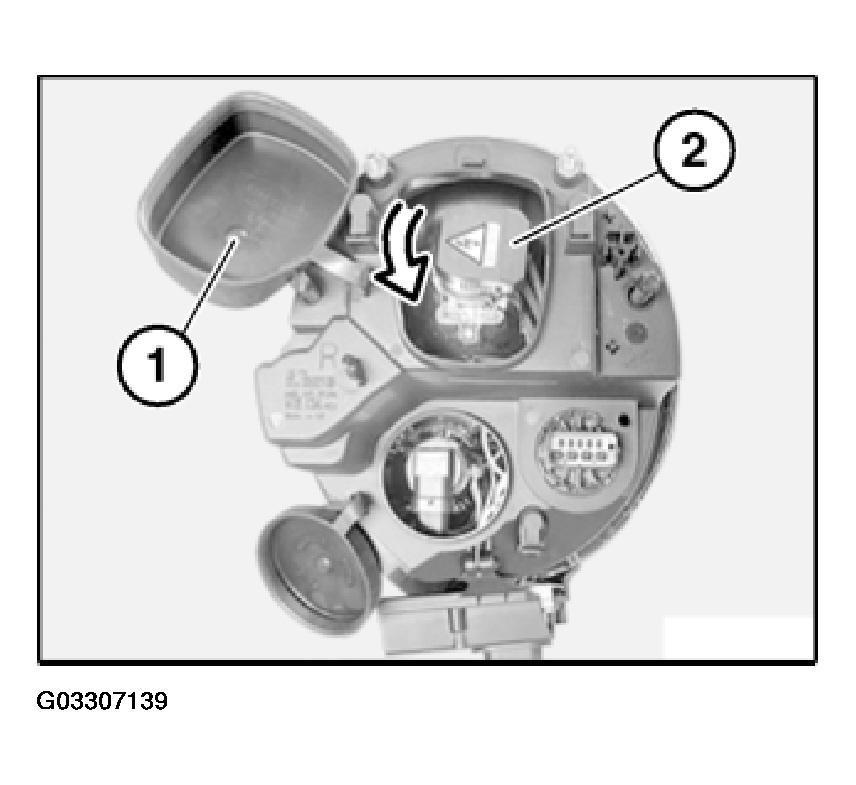

Open cover (1) of bulb for xenon headlight.

Turn ignition unit (2) in direction of arrow and remove.

Fig 1: Locating Ignition Unit

Courtesy of BMW OF NORTH AMERICA, INC.

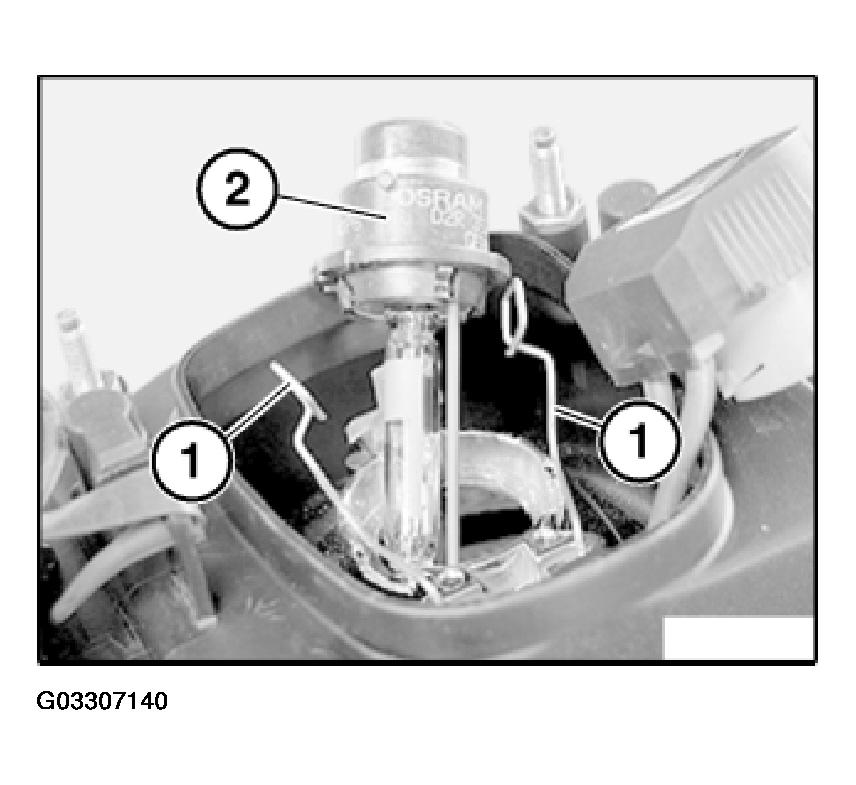

Release lock (1) and remove bulb for xenon headlight (2).

Fig 2: Identifying Xenon Headlight Bulb

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Note type of bulb. Refer to LIGHTS - TECHNICAL DATA - COOPER (1.6L) R50/W10 .
