63 31 080 Removing/installing replacing luggage compartment light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Release luggage compartment light.

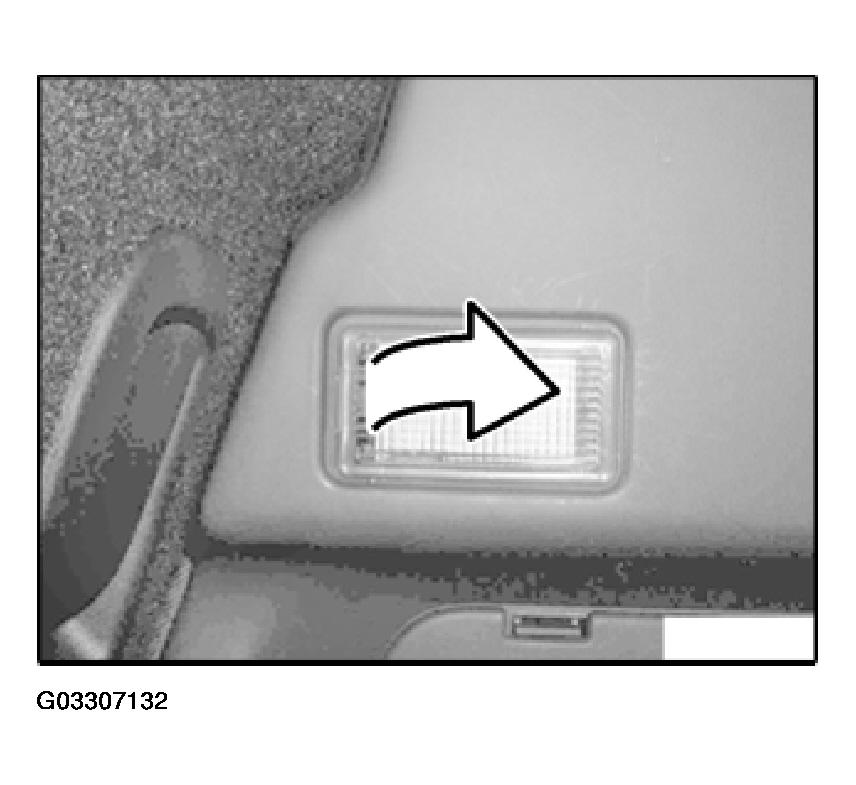

Fig 1: Removing Luggage Compartment Light
G03307132Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect connectors (1) from luggage compartment light (2) and remove light.

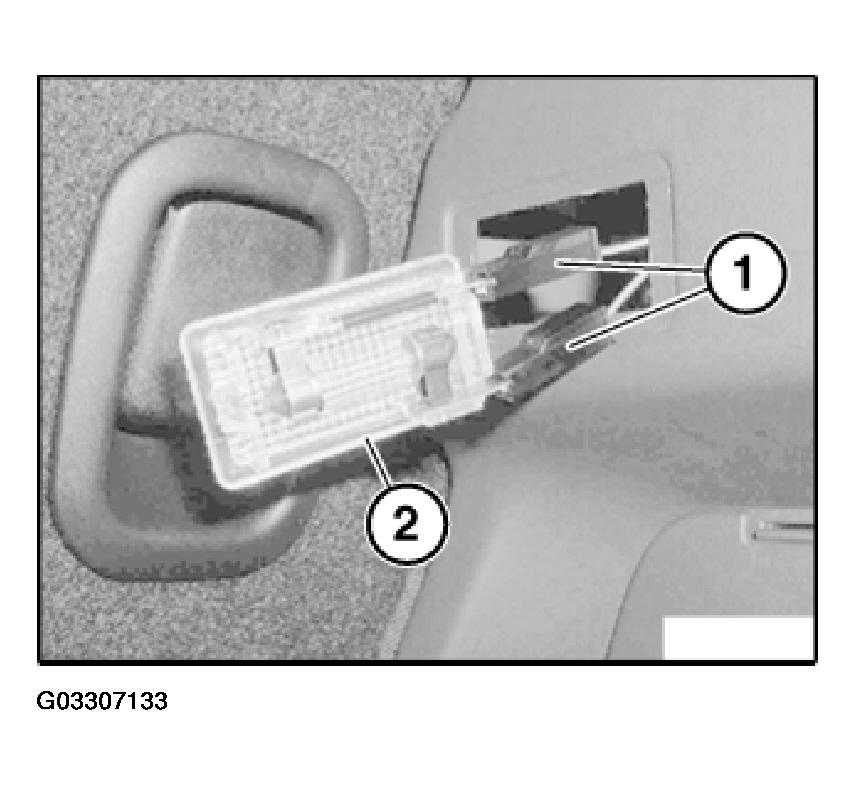

Fig 2: Disconnecting Connectors From Luggage Compartment Light
G03307133Courtesy of BMW OF NORTH AMERICA, INC.
