63 31 020 Removing and installing/replacing footwell light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Follow instructions for handling light bulbs (interior lights). Refer to 63 99 ... INSTRUCTIONS FOR REPLACING LIGHT BULBS (INTERIOR LIGHTS) .

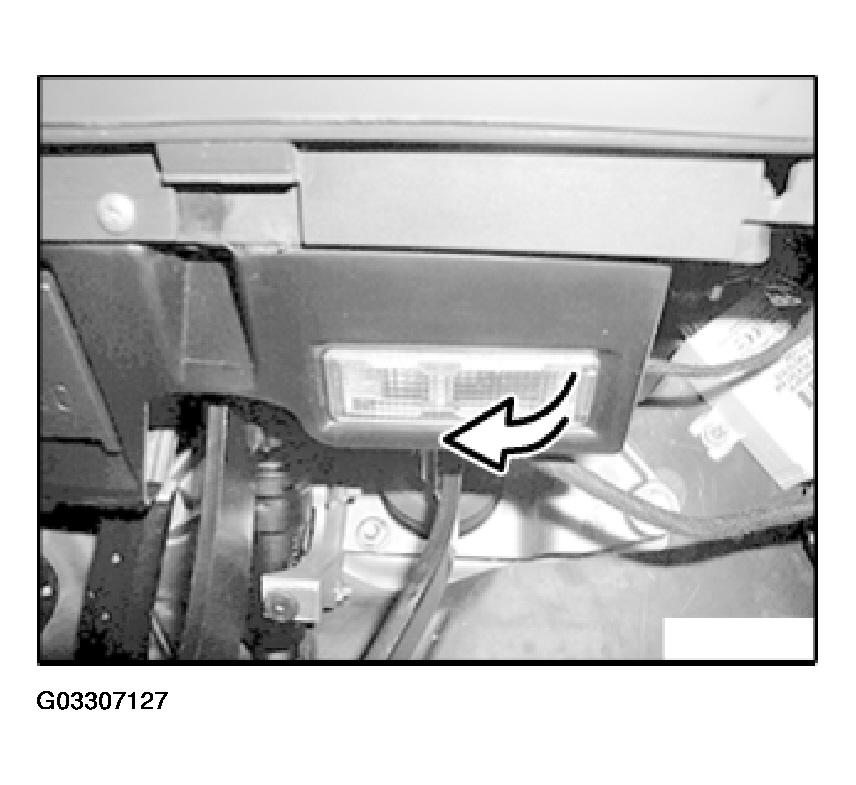

Release footwell light.

Fig 1: Removing Footwell Light
G03307127Courtesy of BMW OF NORTH AMERICA, INC.

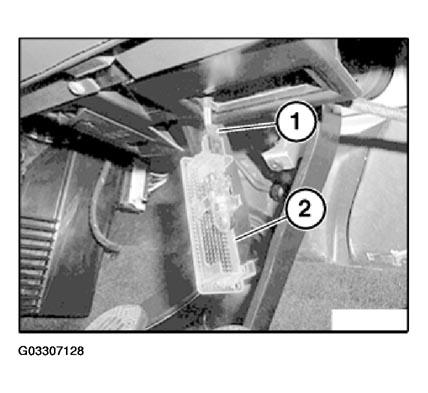

Disconnect plug connection (1) and remove footwell light (2).

Fig 2: Locating Plug Connection
G03307128Courtesy of BMW OF NORTH AMERICA, INC.
