63 31 000 Removing and installing/replacing complete ceiling light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Switch off interior light.

Unclip cover from light module.

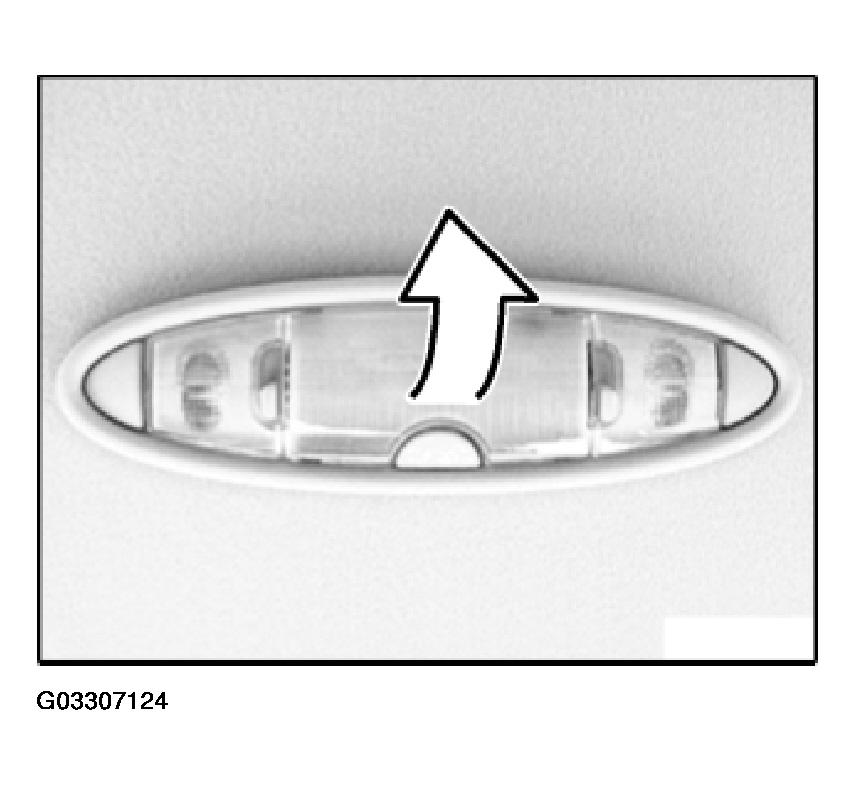

Fig 1: Identifying Light Module Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Remove screws (1) securing light module to headliner.

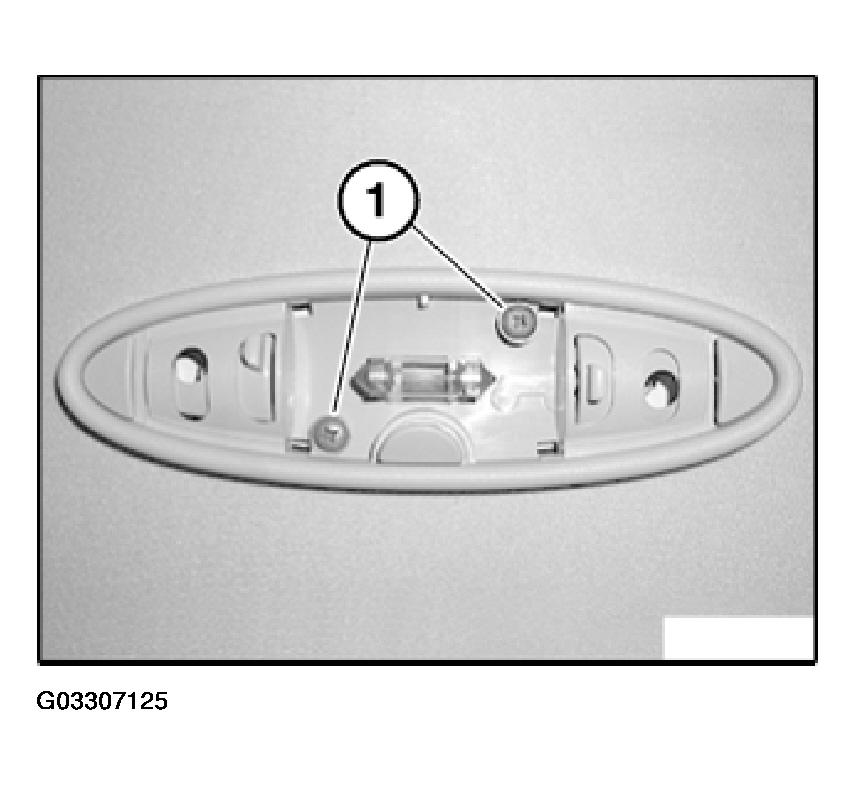

Fig 2: Locating Light Module Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect multiplug (1) from light module.

Remove light module (2).

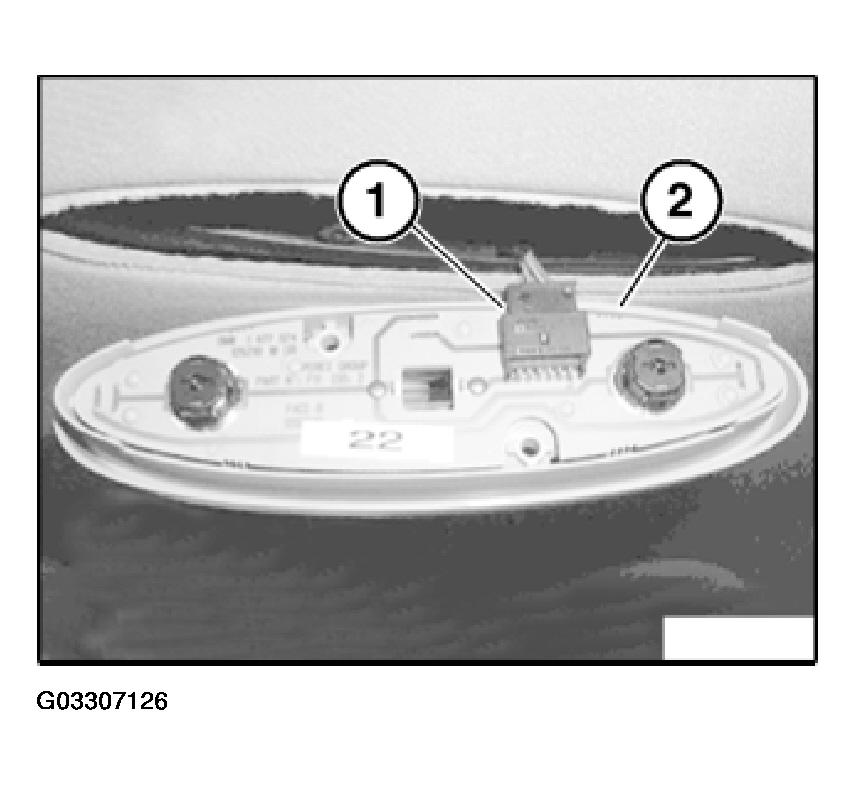

Fig 3: View Of Multiplug In Light Module

Courtesy of BMW OF NORTH AMERICA, INC.
