63 12 862 Replacing control unit for left or right xenon headlight

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Version with xenon headlights: Danger to life due to high voltage! Therefore disconnect all components from voltage supply before removal. Work on the entire xenon lighting system (control unit, ignition unit with lamp) may only be carried out by specialist personnel.

Up to 07/2004:

Release screws (1) and fold down control unit holder.

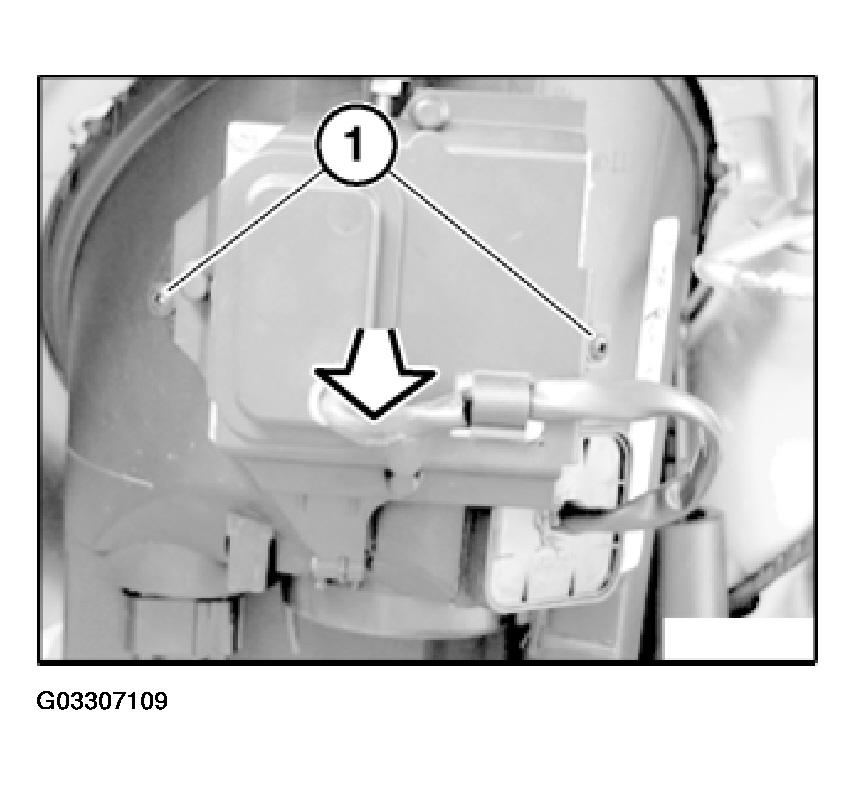

Fig 1: View Of Control Unit Holder (Up To 07/2004)

Courtesy of BMW OF NORTH AMERICA, INC.

From 07/2004:

Release screws (1) and fold down control unit holder (2).

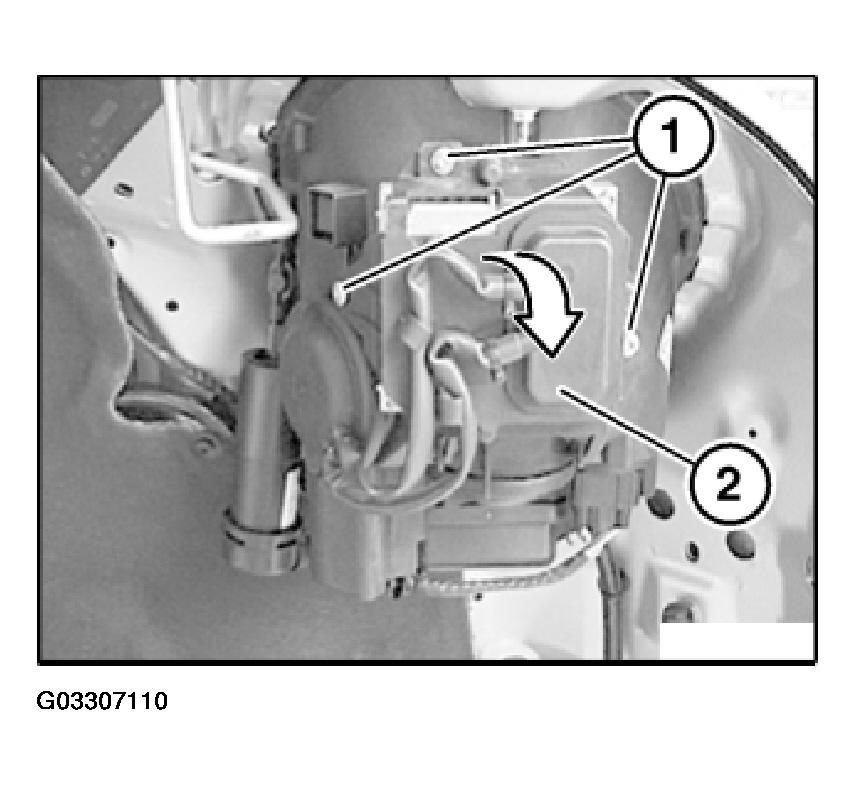

Fig 2: View Of Control Unit Holder (From 07/2004)

Courtesy of BMW OF NORTH AMERICA, INC.

All:

Release screws (1).

Detach control unit for xenon headlight from control unit holder.

Installation:

Make sure associated plug connection of control unit for xenon headlight is correctly seated.

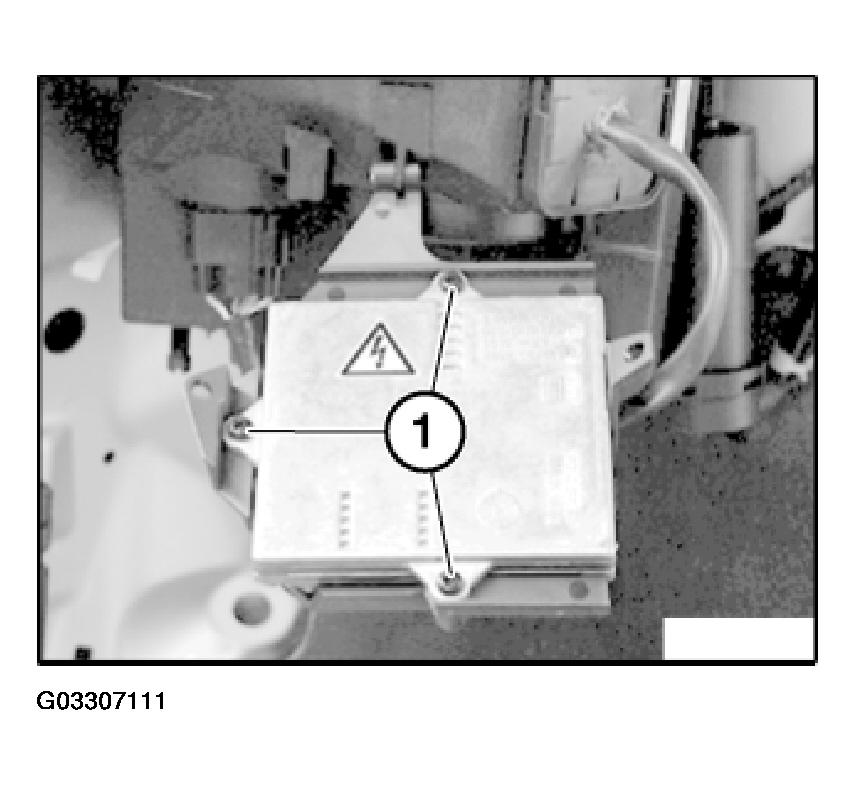

Fig 3: Removing Control Unit From Control Unit Holder

Courtesy of BMW OF NORTH AMERICA, INC.
