63 17 000 Removing and installing/replacing left or right foglamp insert

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front wheel arch trim. Refer to 51 71 040 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH LINER .

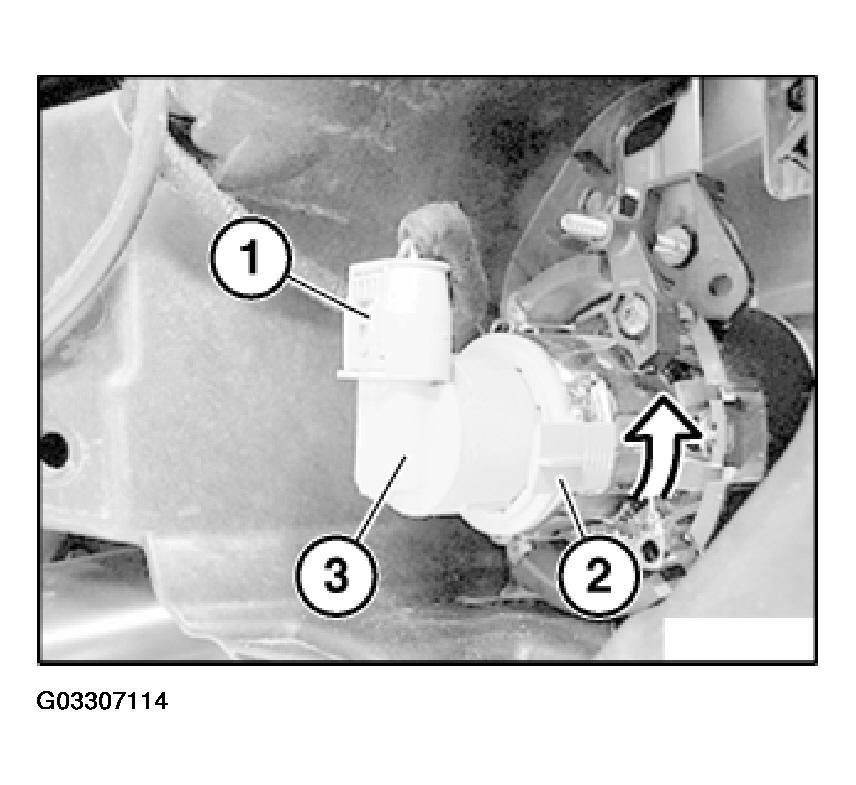

Unfasten plug connection (1) and disconnect.

Turn lock (2) in direction of arrow and remove complete bulb holder (3).

Fig 1: Locating Foglamp Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

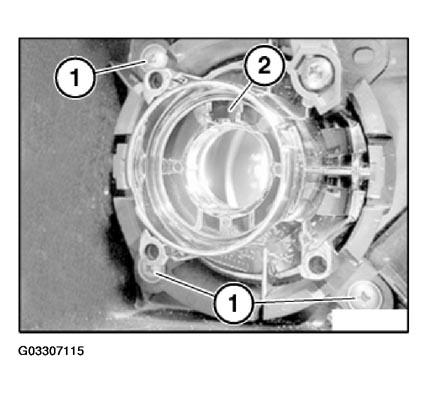

Release screws (1) and remove foglamp insert (2).

Installation:

Adjust front fog lamps. Refer to 63 10 014 ADJUSTING FOG LAMPS .

Fig 2: Identifying Foglamp Insert

Courtesy of BMW OF NORTH AMERICA, INC.
