63 25 000 Removing and installing/replacing additional stop light
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Apply masking tape across stop light to secure to body. This will prevent the light from dropping onto the roof panel and causing paint damage during the following step.
Open tailgate.

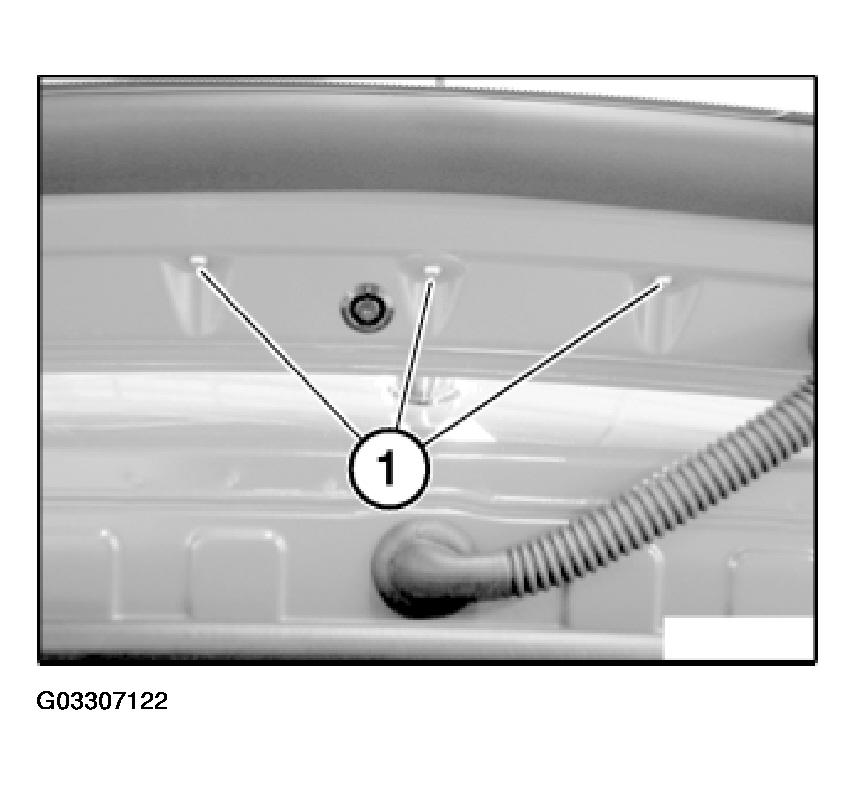

Remove Torx screws (1).
Close tailgate.
Release masking tape and light from tailgate to access electrical connector.

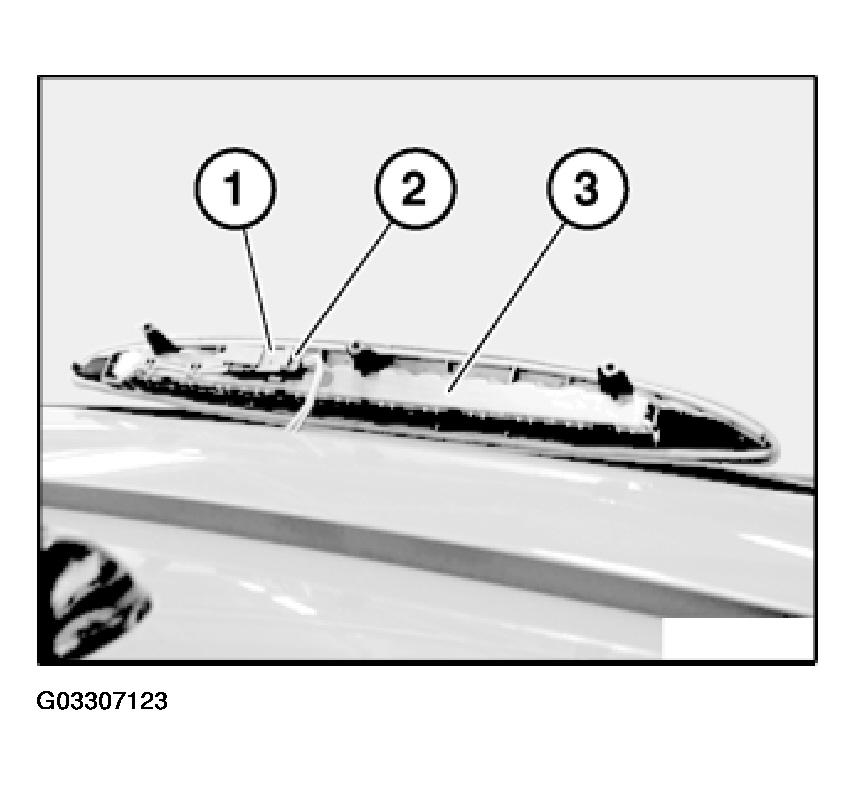

Release connector from light assembly clip (1), disconnect connector (2) and remove light assembly (3).
