54 12 200 Removing and installing complete sunroof

WARNING: This page is about a different car, the 2006 MINI Cooper, 2005 MINI Cooper, 2004 MINI Cooper, 2003 MINI Cooper, and 2002 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Remove headlining. Refer to 51 44 011 REMOVING AND INSTALLING/REPLACING HEADLINER (WITH SLIDE/TILT SUNROOF) .

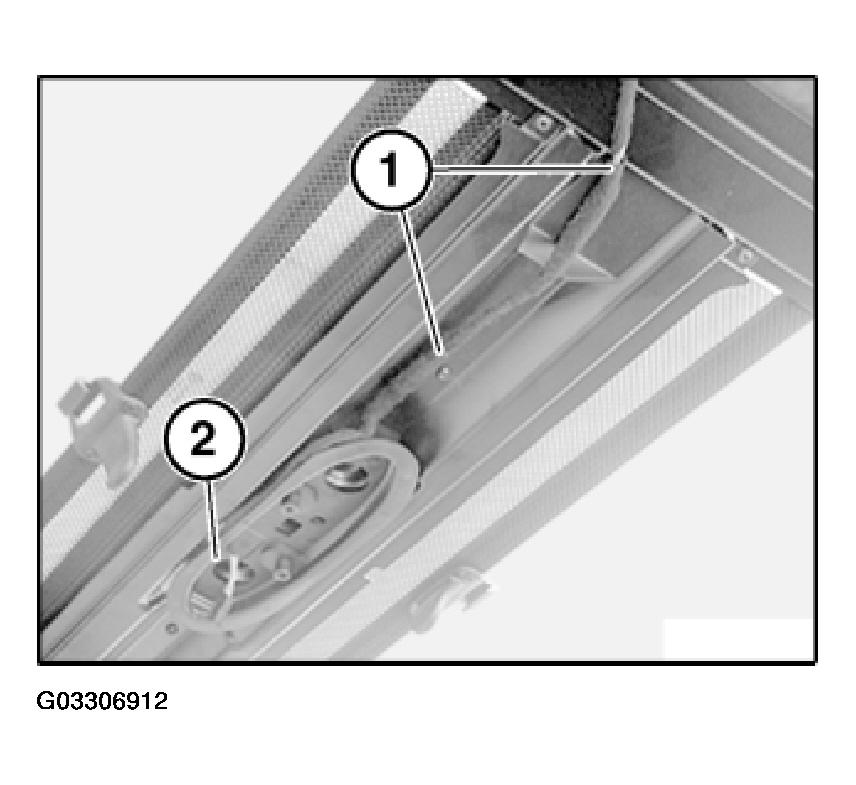

Unclip and release harness (1) from interior light holder (2).

Fig 1: Locating Interior Light Holder Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

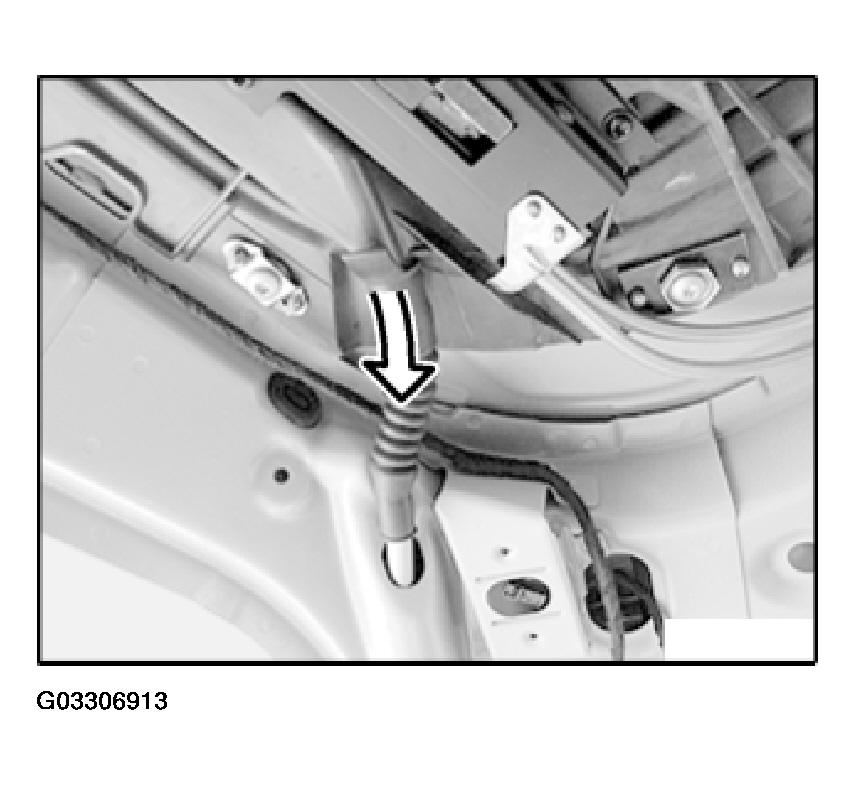

Release front drain tubes.

Fig 2: View Of Front Drain Tubes

Courtesy of BMW OF NORTH AMERICA, INC.

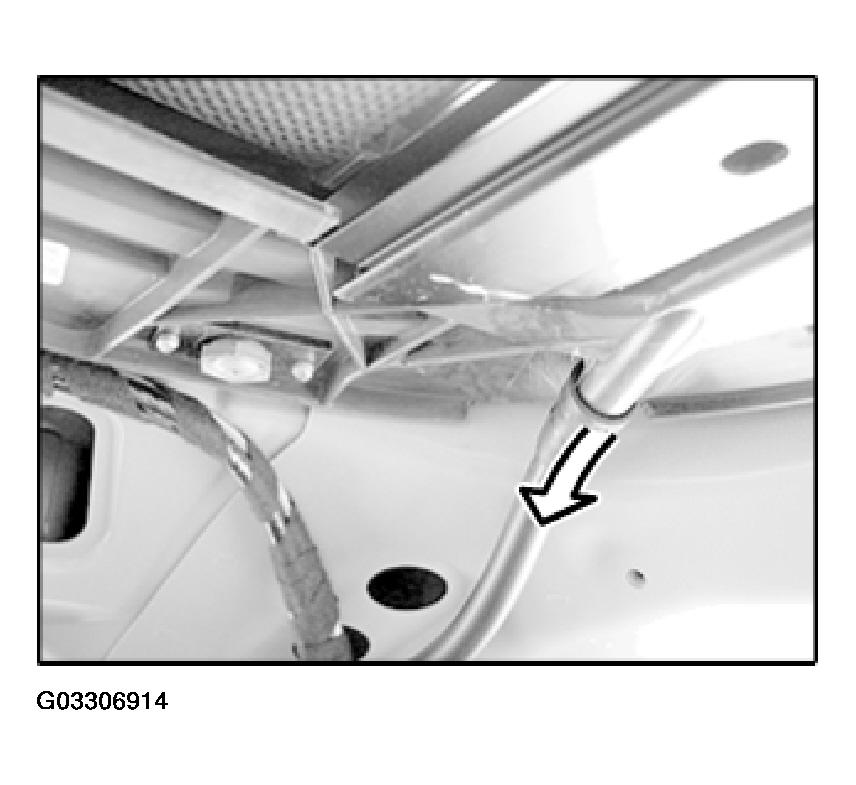

Release rear drain tubes.

Fig 3: Identifying Rear Drain Tubes

Courtesy of BMW OF NORTH AMERICA, INC.

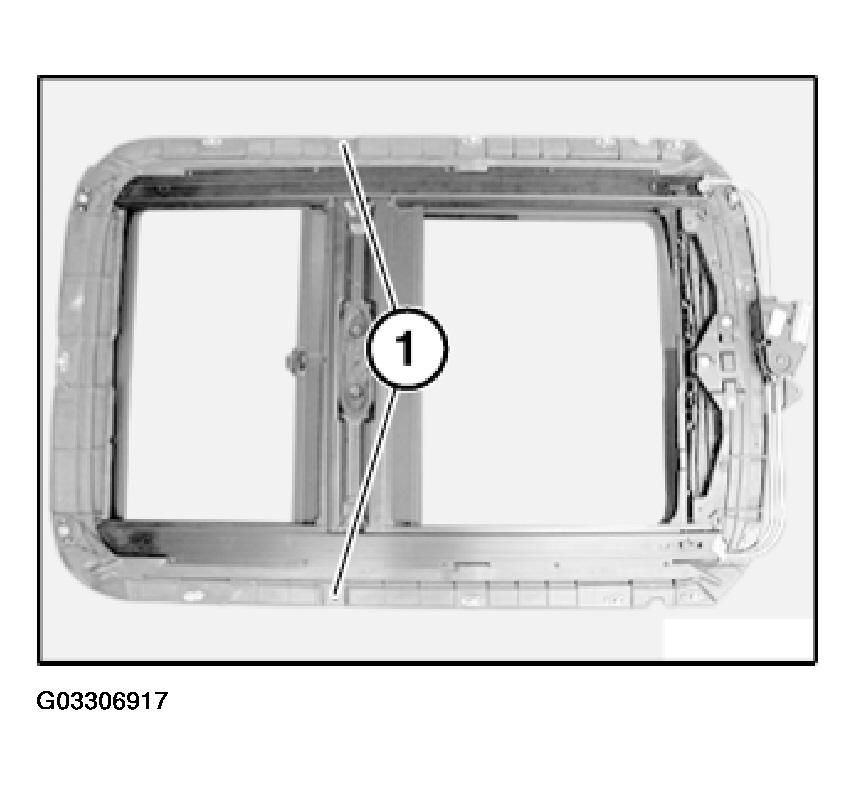

Loosen 9 tolerance compensators (1).

Tightening torque, refer to 54 12 1AZ in SLIDE/TILT ROOF AND CONVERTIBLE TOP - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .

Fig 4: Locating Tolerance Compensators

Courtesy of BMW OF NORTH AMERICA, INC.

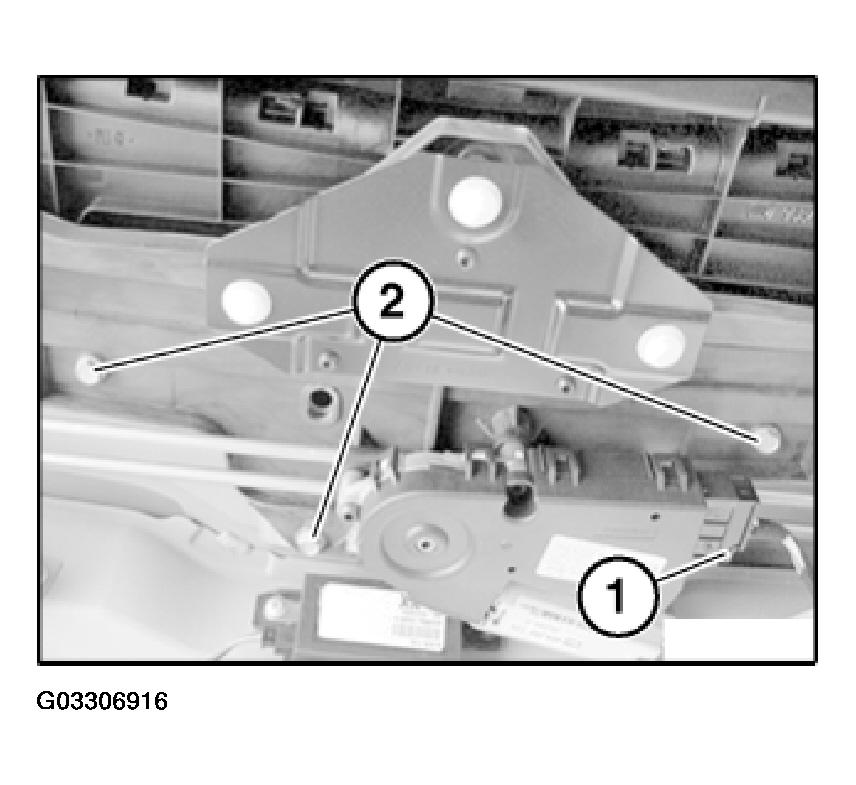

Disconnect connector (1)

Remove bolts (2).

Tightening torque, refer to 54 12 2AZ in SLIDE/TILT ROOF AND CONVERTIBLE TOP - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .

Fig 5: Disconnecting Connector

Courtesy of BMW OF NORTH AMERICA, INC.

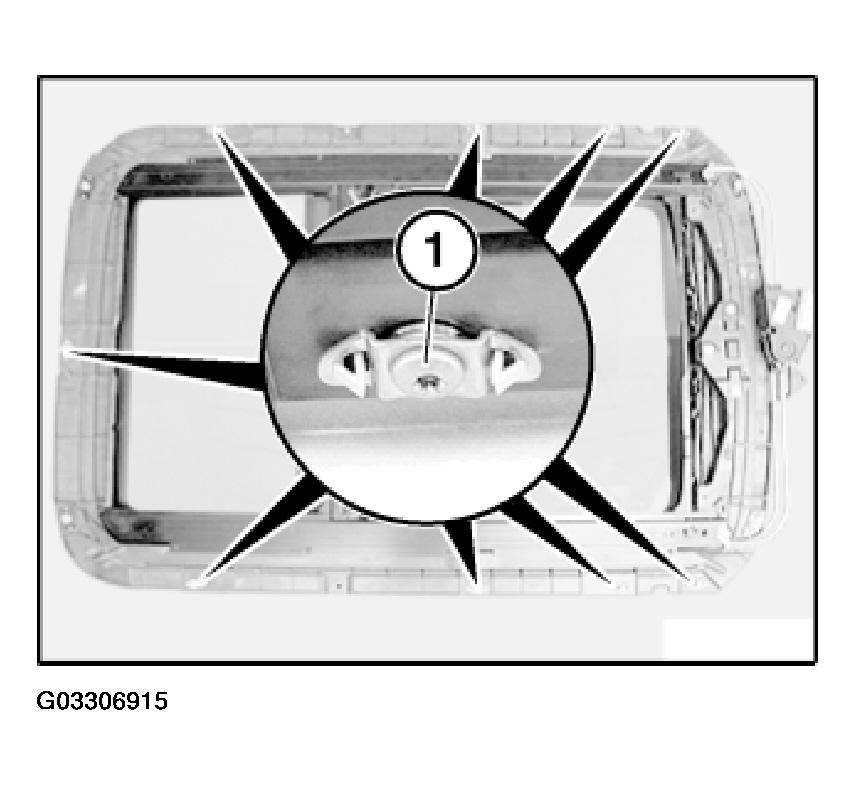

Remove bolts (1).

Tightening torque, refer to 54 12 2AZ in SLIDE/TILT ROOF AND CONVERTIBLE TOP - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .

Fig 6: Identifying Retaining Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Sunroof will require three people for removal.

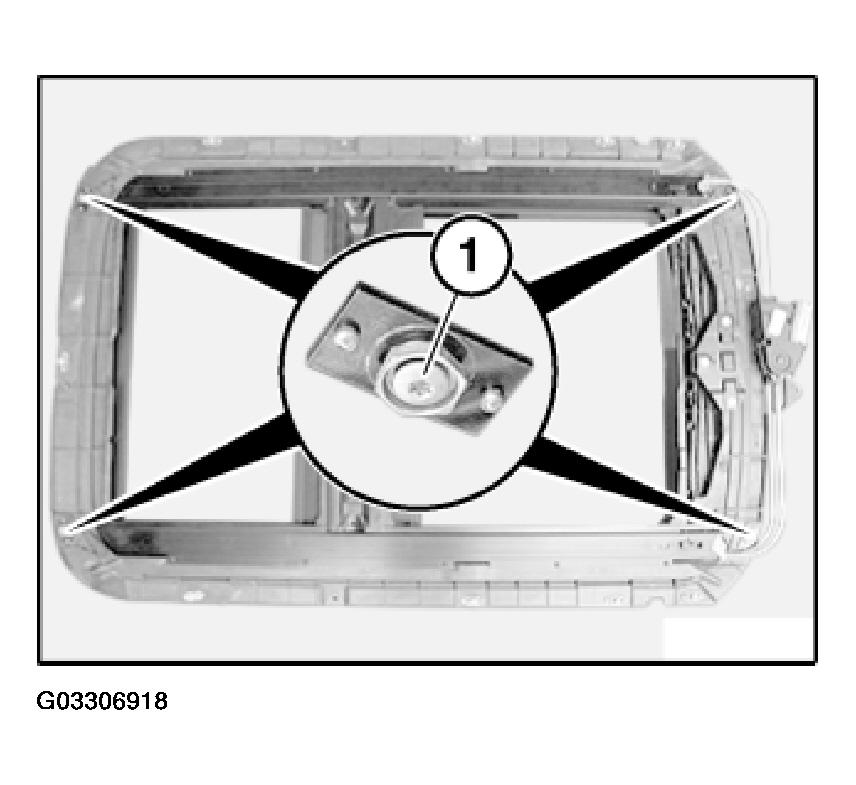

Loosen 4 height adjuster screws (1).

Remove sunroof.

Install Hint:

Adjust sunroof. Refer to 54 12 004 ADJUSTING SUNROOF .

Fig 7: Removing Sunroof

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

A guide pin can be used at the front and rear of the sunroof, to aid positioning of sunroof to body when fitting.
