54 12 115 Removing and installing glass sliding/tilting sunroof lid

WARNING: This page is about a different car, the 2006 MINI Cooper, 2005 MINI Cooper, 2004 MINI Cooper, 2003 MINI Cooper, and 2002 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following two steps can be performed inside the vehicle with the sunroof glass lid fully closed. Graphic shown is for ease of understanding.

Release roller blind (1) from guide channels by twisting rail in direction of arrow.

Allow blind to retract as far as possible and allow rail to hang through sunroof aperture.

NOTE: Be careful to avoid grease on rail ends making contact with headlining.

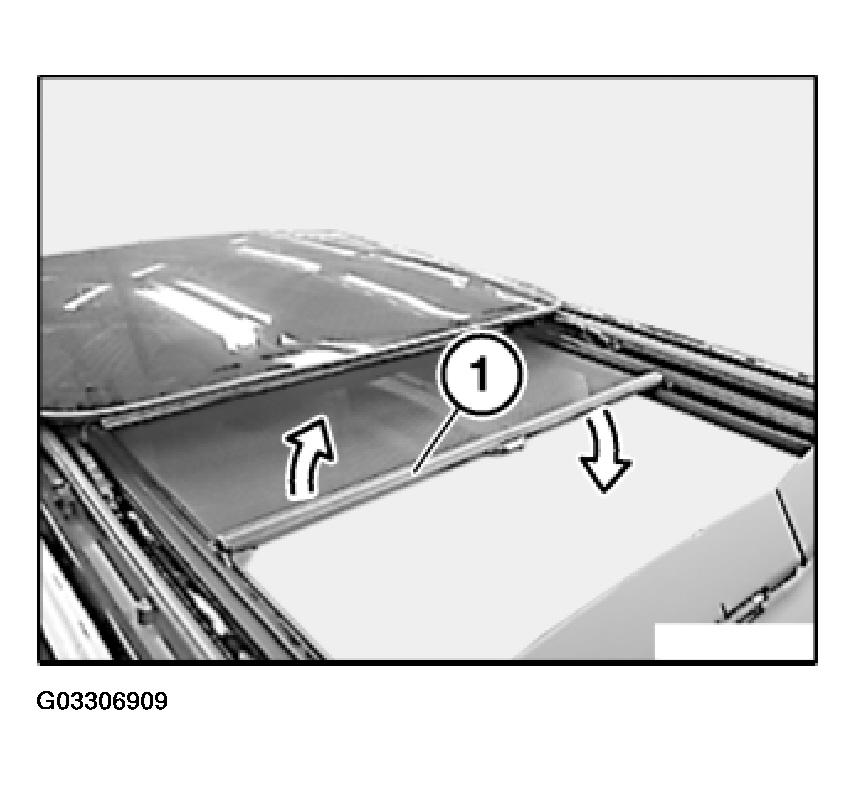

Fig 1: Identifying Direction Of Roller Blind

Courtesy of BMW OF NORTH AMERICA, INC.

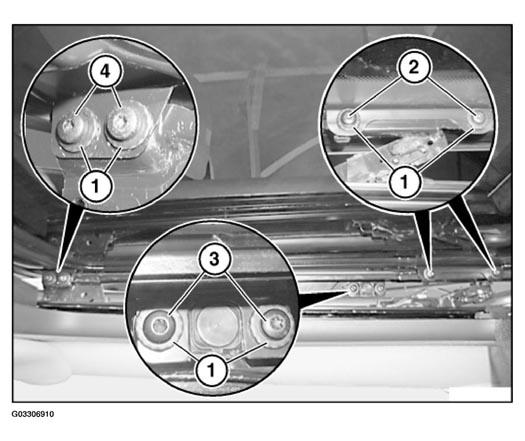

Fig 2: Identifying Torx Screws And Washer

Courtesy of BMW OF NORTH AMERICA, INC.

Open sunroof glass lid into "tilt" position.

NOTE: Prior to removing Torx screws apply a mark around washers (1) (as shown) to aid correct installation alignment.

Remove and discard Torx screws (2) securing glass lid to mechanism.

Remove and discard Torx screws (3) securing glass lid to mechanism.

Open sunroof sufficiently to gain access to front fixing screws (4).

Remove and discard Torx screws (4) securing glass lid to mechanism.

Tightening torque, refer to 54 12 4AZ in SLIDE/TILT ROOF AND CONVERTIBLE TOP - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .

Installation:

Fit new Torx screws and align washers to marks (1).

Check for correct sunroof glass lid alignment.
