34 41 001 Removing and installing handbrake lever

WARNING: This page is about a different car, the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, and 2005 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear center console. Refer to 51 16 216 REMOVING AND INSTALLING REAR CENTER CONSOLE .
Remove carrier for rear center console. Refer to 51 16 218 REMOVING AND INSTALLING / REPLACING REAR STORAGE COMPARTMENT HOLDER .

After completing tasks, adjust handbrake. Refer to 34 10 014 ADJUSTING HANDBRAKE .

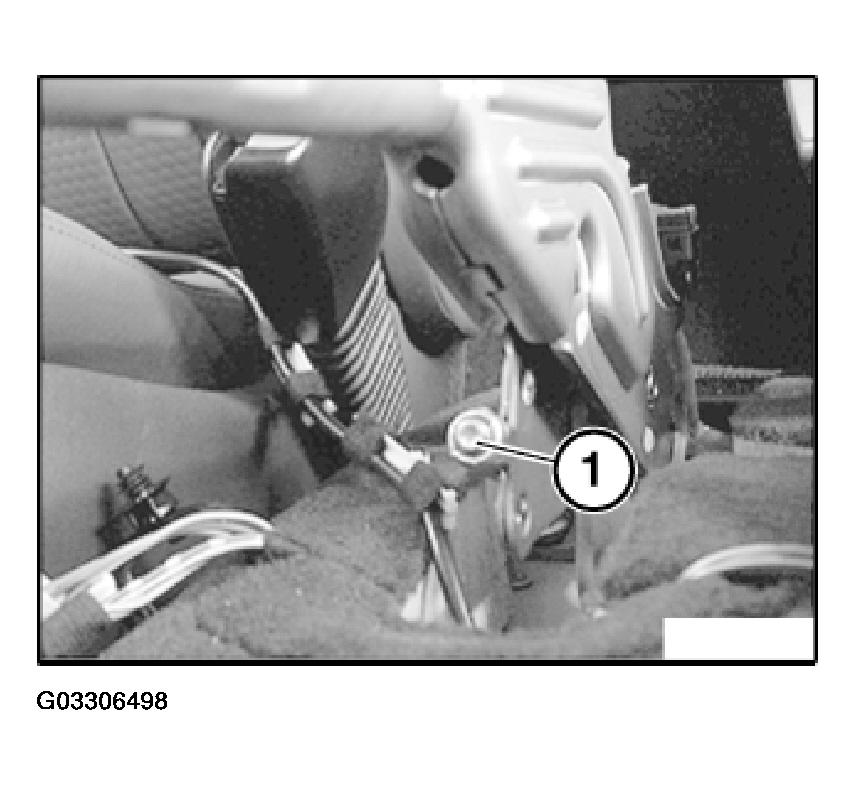

Release adjustment unit (1) for handbrake lever.

Fig 1: View Of Adjustment Unit For Handbrake Lever

Courtesy of BMW OF NORTH AMERICA, INC.

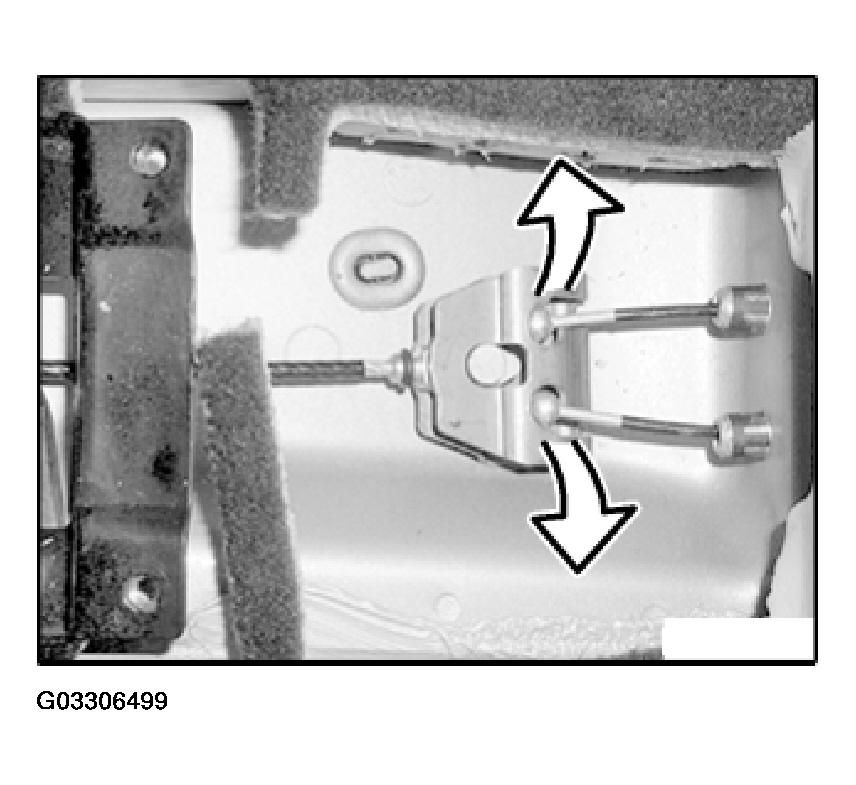

Detach both parking brake Bowden cables from balance arm.

Fig 2: Identifying Parking Brake Bowden Cables

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection for handbrake check switch.

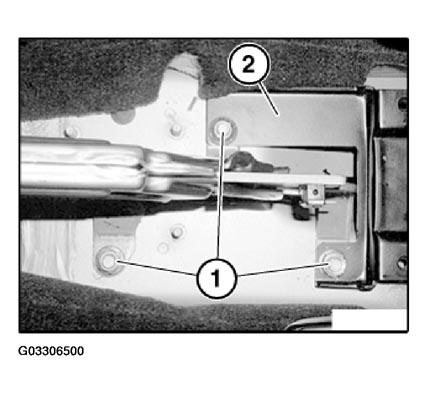

Release screws (1) and remove fastener (2).

Installation:

Tightening torque, (22 +/- 3 N.m.).

Remove handbrake lever.

Fig 3: Locating Handbrake Check Switch Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
