34 31 181 Replacing expansion tank for hydraulic brake actuation
WARNING: This page is about a different car, the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, and 2005 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Read and comply with General Information. Refer to 34 00 ... GENERAL INFORMATION . Draw brake fluid out of expansion tank using a suction bottle. Use a suction bottle used exclusively for drawing off brake fluid. Do not reuse drawn out brake fluid.

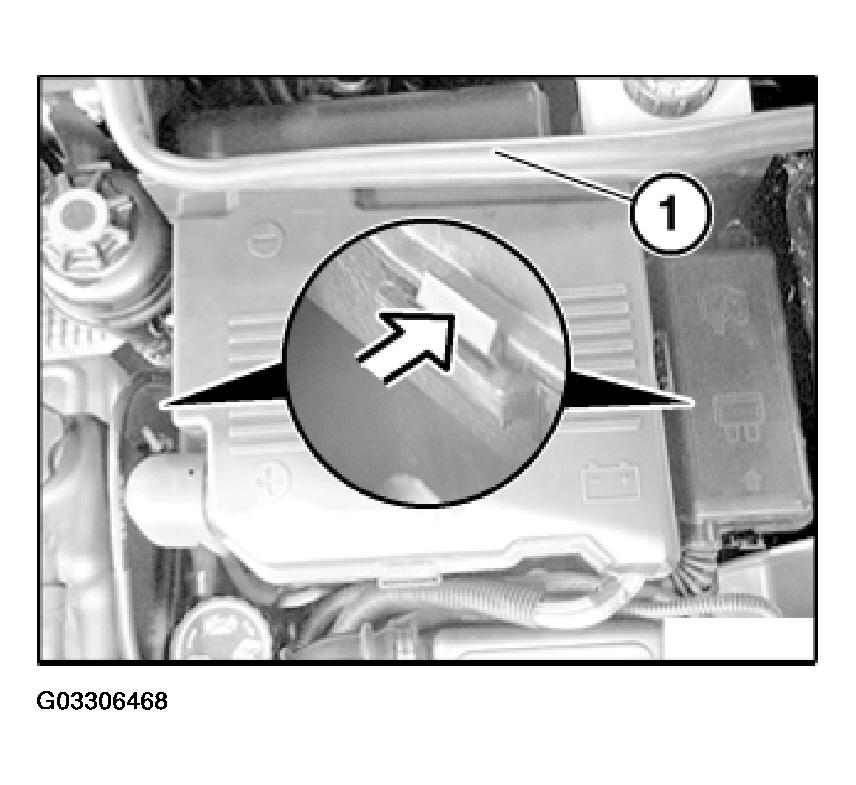

Remove seal (1).
Press release tabs on left and right in direction of arrow and remove cover.

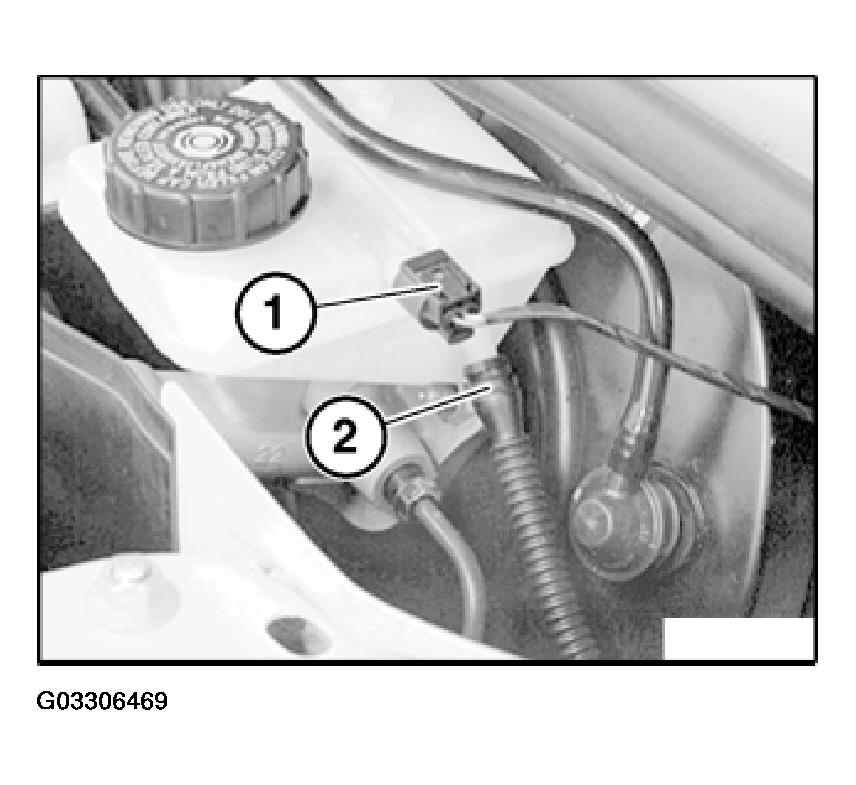

Disconnect plug connection (1).
Detach feed hose (2) for clutch hydraulics.
NOTE:
The supply hose must be secured in the vertical position so that no fluid can emerge.
Unclip vacuum hose for brake booster at top of expansion tank.

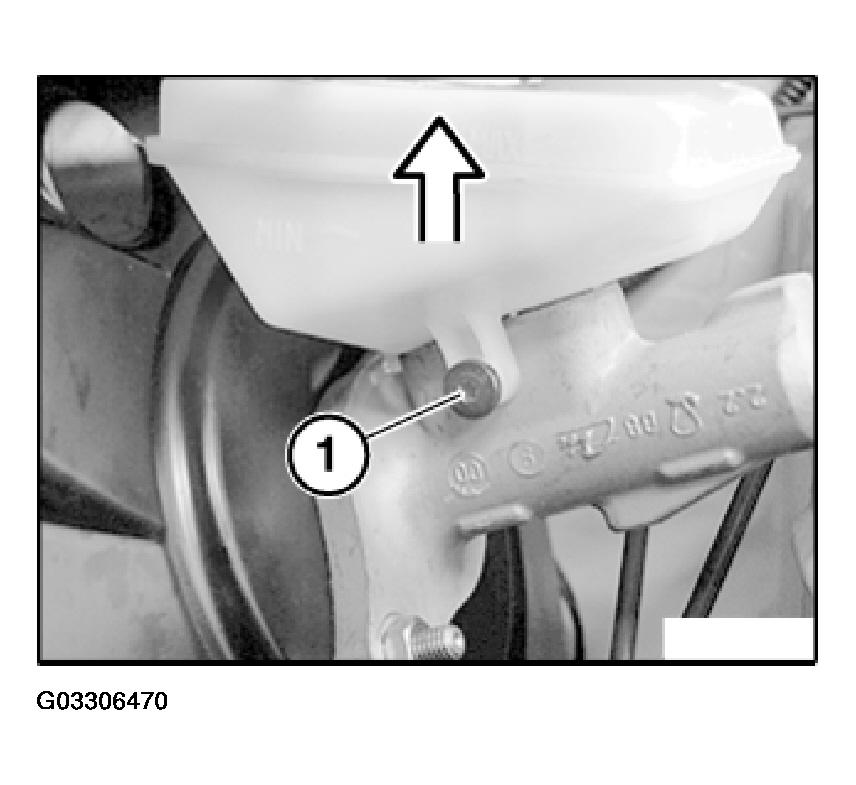

Release screw (1).
Installation:
Tightening torque, (3.5 N.m.).
Lift expansion tank vertically from brake master cylinder.
Installation:

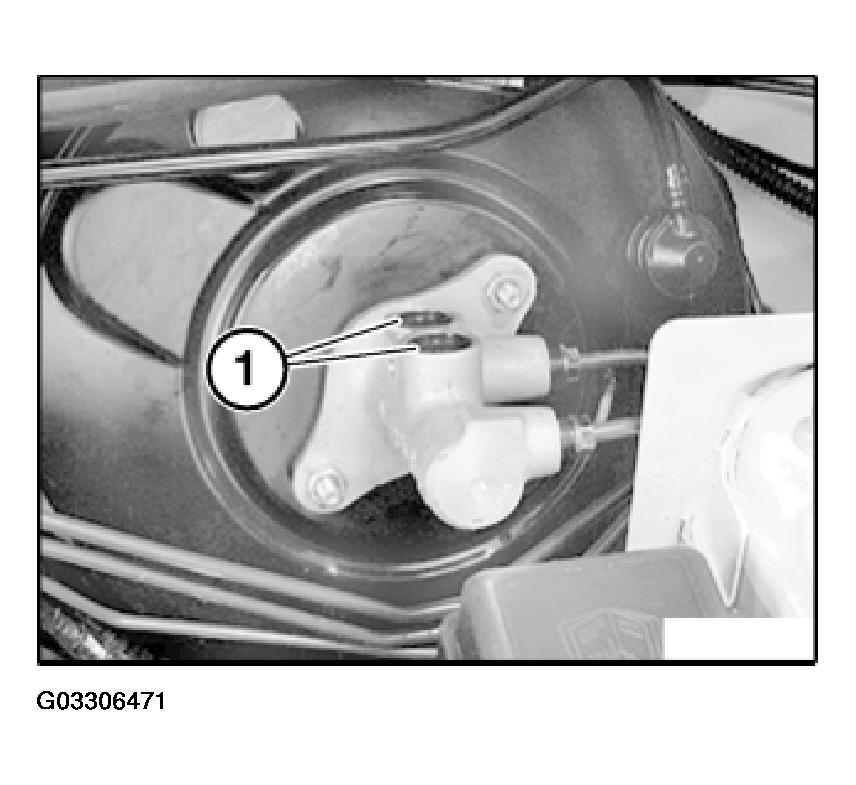

Check o-rings (1) and replace if necessary. Push the expansion tank vertically onto the master brake cylinder.
