22 31 001 Replacing rubber mount for gearbox mounting

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see ENGINE- SPECIAL TOOLS and MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 0 201
00 0 202
00 0 205
00 0 207
00 0 209
11 8 260

Remove battery container. Refer to 61 21 100 REMOVING AND INSTALLING/REPLACING BATTERY CONTAINER .

Undo retaining screws (1) holding clutch slave cylinder and

remove clutch slave cylinder (2) from gearbox retaining fixture.

Tightening torque, (24 N.m.).

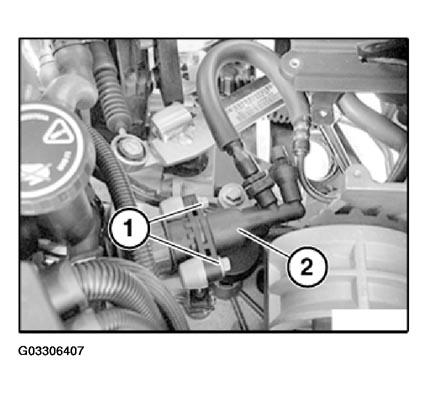

Fig 1: Locating Clutch Slave Cylinder

G03306407

Courtesy of BMW OF NORTH AMERICA, INC.

Fit assembly bridge to vehicle.

Use special tools 00 0 201, 00 0 202, 00 0 205, 00 0 207, 00 0 209 and 11 8 260.

Sufficiently tighten support bridge to take up the weight of the engine and gearbox.

Fig 2: View Of Support Bridge

G03306408

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew gearbox retaining screw (1) at upper bracket and retaining screws (2) at gearbox.

Remove gearbox retaining fixture (3).

Tightening torque, (66 N.m.).

Tightening torque, (38 N.m.).

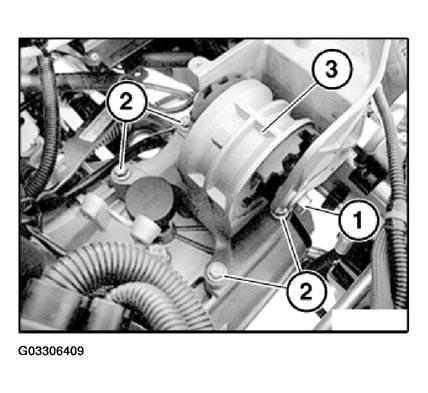

Fig 3: Identifying Gearbox Retaining Screw

G03306409

Courtesy of BMW OF NORTH AMERICA, INC.
