17 22 060 Removing and refitting or replacing oil cooler (CVT)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see FUEL SYSTEM - SPECIAL TOOLS - COOPER .

Special Tools Required:

13 5 281
13 5 282

Disconnect pipes (1) from oil cooler and connect special tools 13 5 281 and 13 5 282.

Fig 1: Disconnecting Pipes From Oil Cooler

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bolt (1) and remove from mounting (2) in direction shown.

Remove oil cooler (3).

Tightening torque, refer to 17 21 1AZ in COOLING SYSTEM - TIGHTENING TORQUES - COOPER .

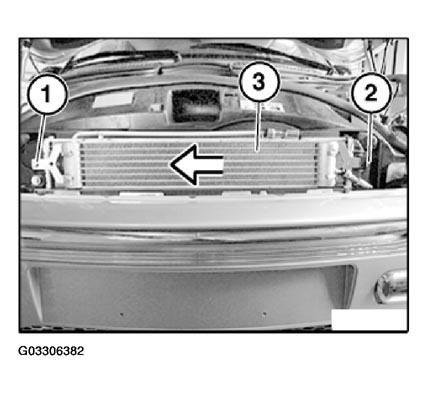

Fig 2: Removing Bolt And Oil Cooler

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check gearbox oil level, if the oil cooler has been replaced or drained. Refer to 00 11 239 FLUID CHANGE IN AUTOMATIC TRANSMISSION (CVT) INCLUDING USED FLUID DISPOSAL .
