17 00 010 Checking for leaks between cooling system and combustion chamber

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Checking for leaks while the engine is running creates the risk of engine overheating. Observe coolant temperature.

R50:

Remove pressure cap from fill tower.

Check for leaks with CO2 leak tester.

R53:

Remove pressure cap from expansion tank.

Check for leaks with CO2 leak tester.

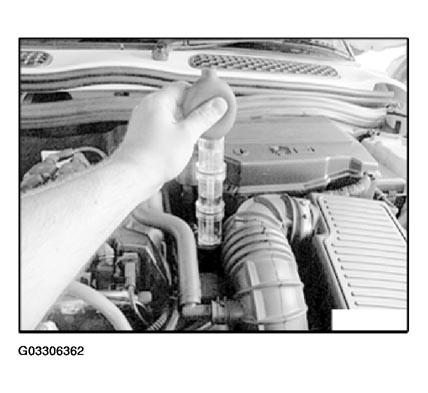

Fig 1: Checking For Leaks With CO2 Leak Tester
G03306362Courtesy of BMW OF NORTH AMERICA, INC.

Follow equipment manufacturer's operating instructions.
