13 72 001 Replacing air cleaner element

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

Raise cover and slide in direction of arrow.

NOTE: Illustration shows intake pipe removed.

Intake pipe does not have to be removed to replace air cleaner element.

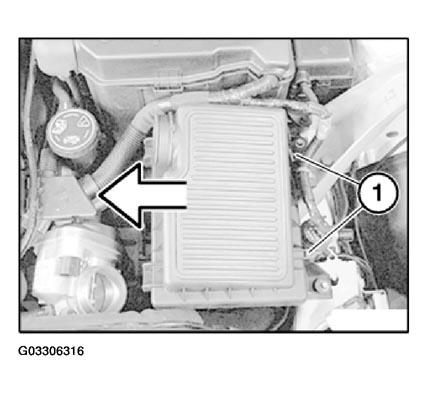

Fig 1: Locating Screws And Cover
G03306316Courtesy of BMW OF NORTH AMERICA, INC.

Fold cover open.

Remove air cleaner element from intake filter housing.

Installation:

Clean intake filter housing.

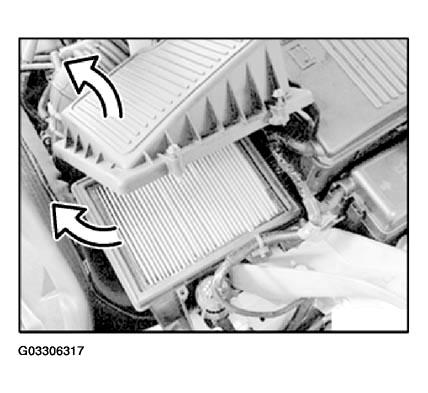

Fig 2: View Of Air Cleaner Element
G03306317Courtesy of BMW OF NORTH AMERICA, INC.
