12 61 280 Removing and installing/replacing oil pressure switch

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Switch off ignition.
Remove right front wheel. Refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .

WARNING: Danger of scalding!

Carry out this work step only when the engine has cooled down.

Open oil filter cap so that oil can flow back into oil sump.

Tighten down oil filter cap.

Tightening torque, refer to 11 42 1AZ in ENGINE - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .

Unlock plug (1) and remove.

Release oil pressure switch (2).

Tightening torque, refer to 12 61 1AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .

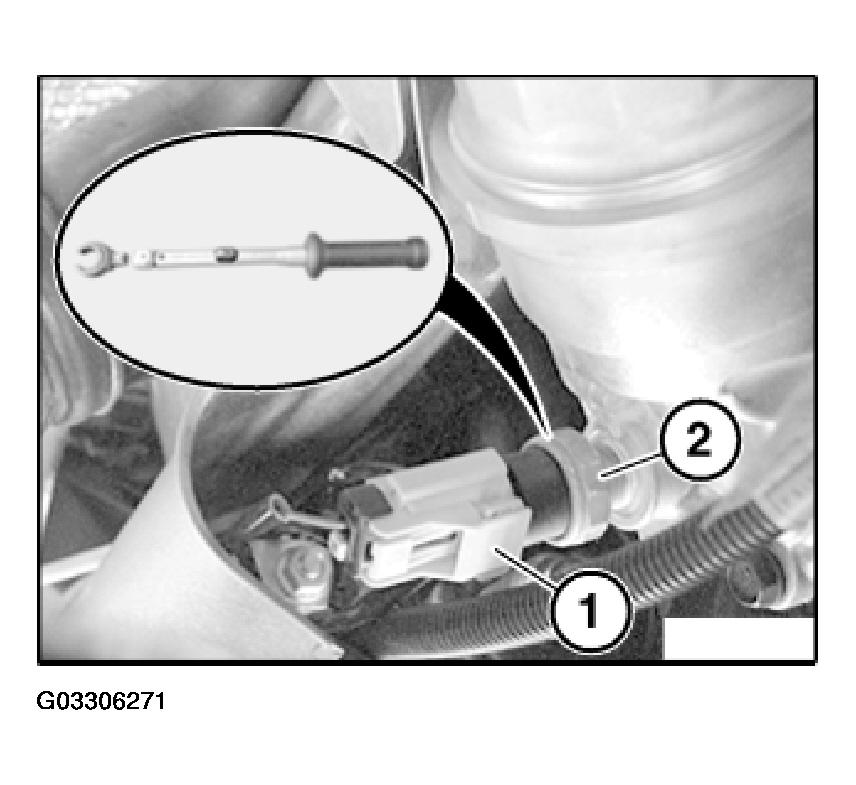

Fig 1: Releasing Oil Pressure Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Clean oil pressure sensor and thread in oil filter housing.

If the oil pressure sensor is to be reused, apply sealing compound to the thread as illustrated.

Check engine oil level.

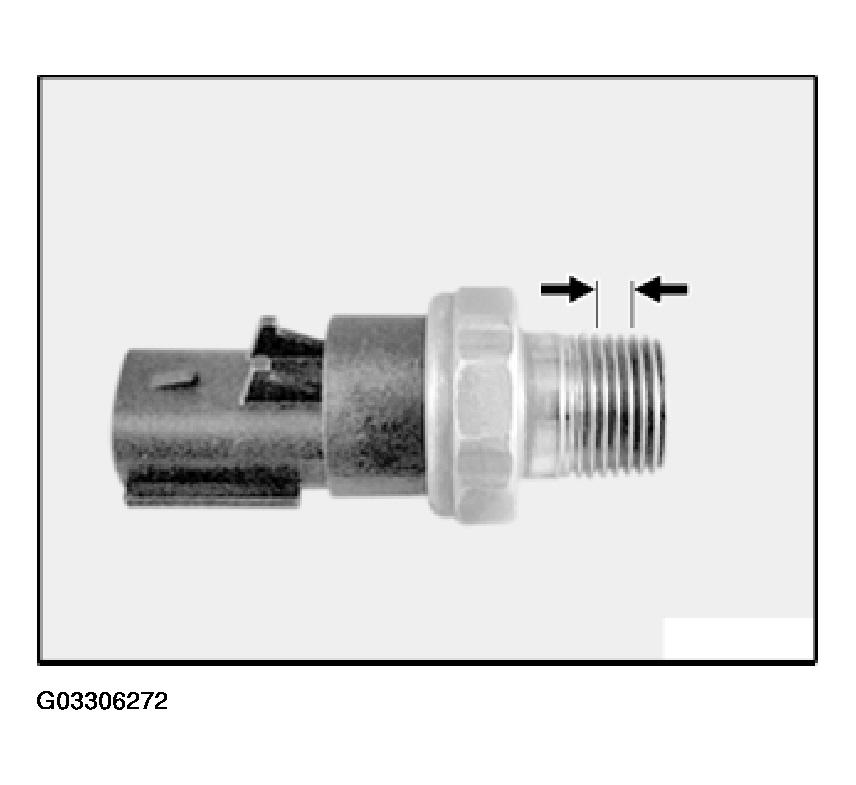

Fig 2: Application Areas For Sealing Compound On Threads

Courtesy of BMW OF NORTH AMERICA, INC.
