12 12 021 Replacing an ignition cable

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition.

Detach faulty ignition cable from ignition coil and spark plug.

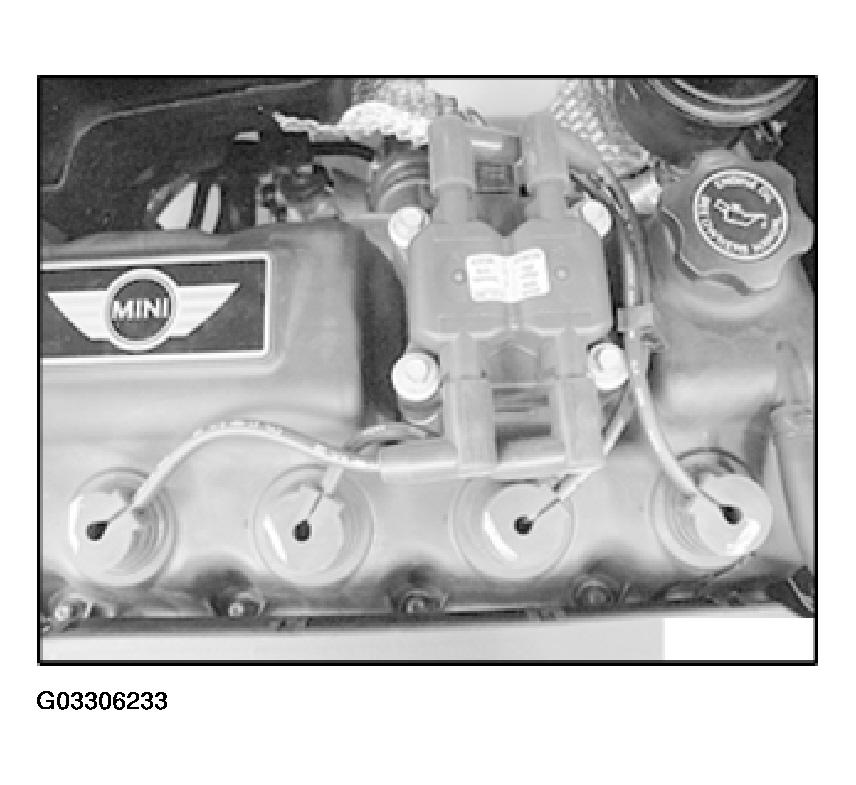

Fig 1: Locating Faulty Ignition Cable From Ignition Coil
G03306233Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Ignition cable must snap audibly into place on ignition coil and on spark plug.

Incorrectly installed ignition cable (1) and correctly installed ignition cable (2).

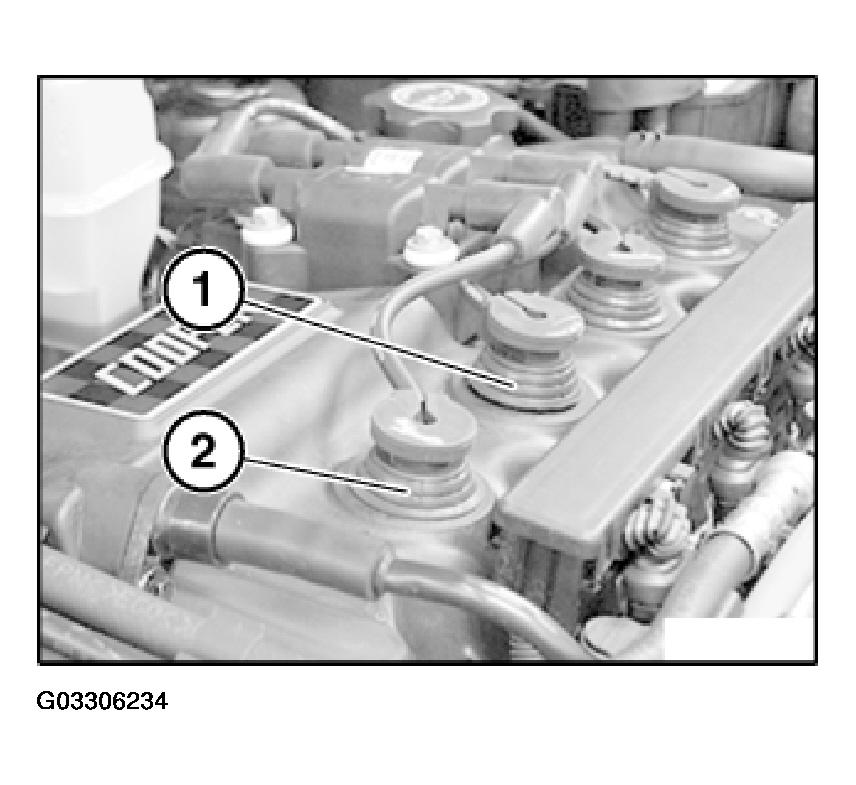

Fig 2: Identifying Correct/Incorrect Installed Ignition Cable
G03306234Courtesy of BMW OF NORTH AMERICA, INC.
