12 14 600 Replacing knock sensor
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Switch off ignition.
- Read out fault memory of DME control unit.
- Check stored fault messages.
NOTE:
R50 Only:
Remove intake air manifold. Refer to 11 61 051 REMOVING AND INSTALLING INTAKE MANIFOLD .
Unlock and disconnect knock sensor plug connection.

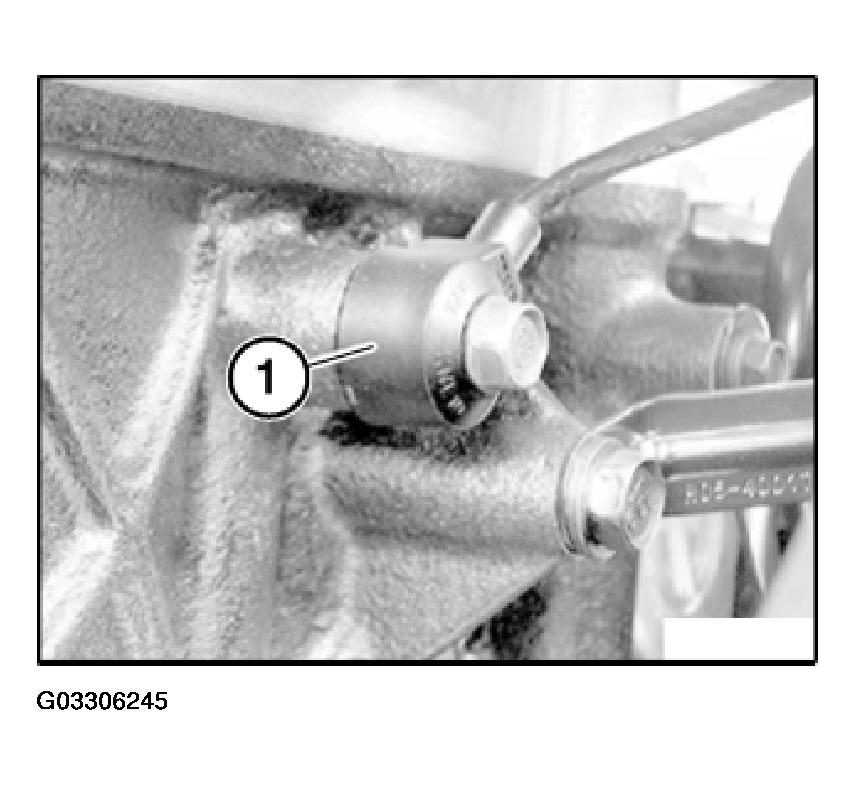

Release knock sensor screw, remove knock sensor (1).
Installation:
Clean contact surface of knock sensors.
Tightening torque, refer to 12 14 1AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .
Observe position of knock sensor in relation to engine block.
At angle of 20° to the perpendicular.
NOTE:
Now clear the fault memory.
