12 14 550 Replacing control unit (DME)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Switch off ignition.
Remove battery cover.
Disconnect battery. Refer to 12 00 DISCONNECTING AND CONNECTING BATTERY .

IMPORTANT: Follow instructions for removing and installing electronic control units.

NOTE:

Connect diagnosis system.
Read fault memory.
Check stored fault messages.
Rectify faults.
Clear fault memory.

Release clips (1) and lift out DME control unit.

Unlock plug connections outwards (2) and detach in direction of arrow (3).

Remove control unit.

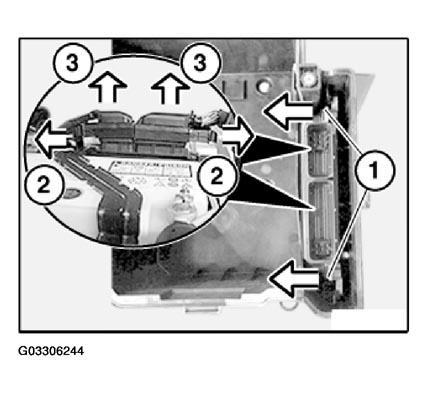

Fig 1: Releasing Clips And Lifting Out DME Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out coding/programming.

Observe following IDC specifications:

Programming.
Coding.
If necessary, car & key memory.
CD "CIP".

NOTE:

Clear fault memory
