12 14 537 Replacing camshaft pulse generator
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Switch off ignition.
- Read out fault memory of DME control unit.
- Check stored fault messages.
- Remove right engine support arm. Refer to 22 11 100 REPLACING RIGHT ENGINE MOUNTING BRACKET (UP TO 12.03)
Unlock and disconnect pulse generator plug.

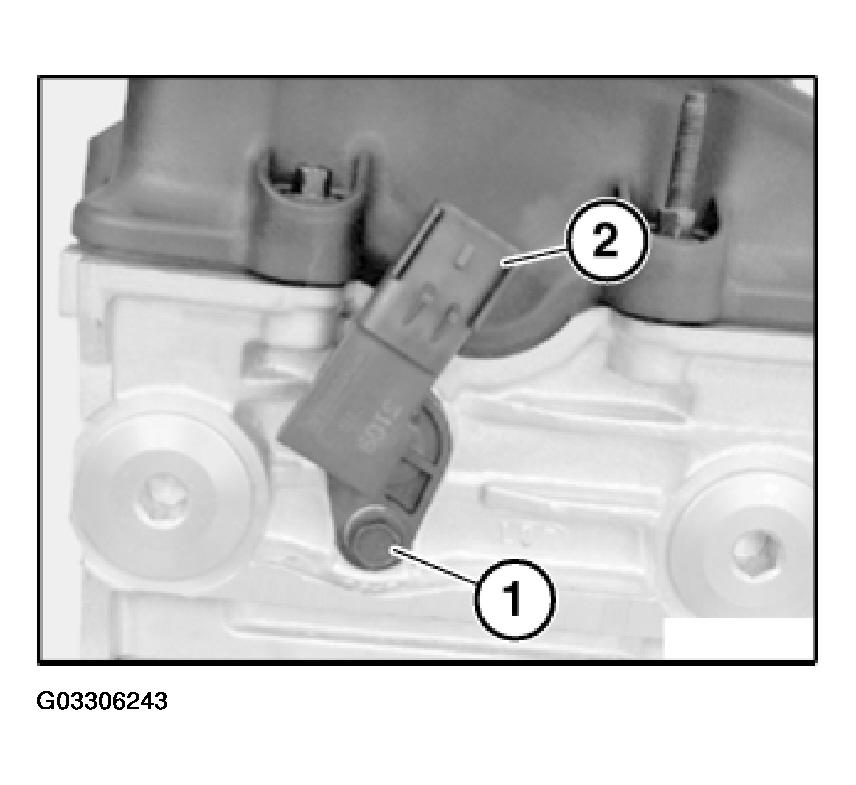

Release screw (1), remove pulse generator (2).
Installation:
Replace sealing ring and coat with antiseize agent.
Tightening torque, refer to 13 62 1AZ in FUEL SUPPLY SYSTEM - TIGHTENING TORQUES .
NOTE:
Now clear the fault memory.
