12 14 521 Replacing crankshaft pulse generator
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Switch off ignition.
- Read out fault memory of DME control unit.
- Check stored fault messages.
- Remove intake air manifold. Refer to 11 61 051 REMOVING AND INSTALLING INTAKE MANIFOLD .

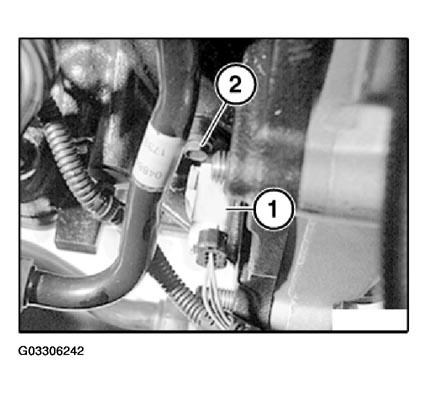

Unlock plug (1) and remove.
Unscrew bolt (2).
Remove impulse sensor.
Installation:
Replace sealing ring.
Tightening torque, refer to 13 62 2AZ in FUEL SUPPLY SYSTEM - TIGHTENING TORQUES .
NOTE:
Now clear the fault memory.
