12 62 500 Replacing coolant temperature sensor (DME)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Read out fault memory of DME control unit.
- Check stored fault messages.
- Switch off ignition.
- Remove intake filter housing. Refer to 13 71 000 REMOVING AND INSTALLING INTAKE FILTER HOUSING .
- Drain coolant down to below height of thermostat housing. Refer to 17 00 005 DRAINING AND ADDING COOLANT .
- R50 Only: Remove battery housing. Refer to 61 21 100 REMOVING AND INSTALLING/REPLACING BATTERY CONTAINER .
WARNING:
Danger of scalding! Only carry out work on the cooling system after the engine has cooled down!

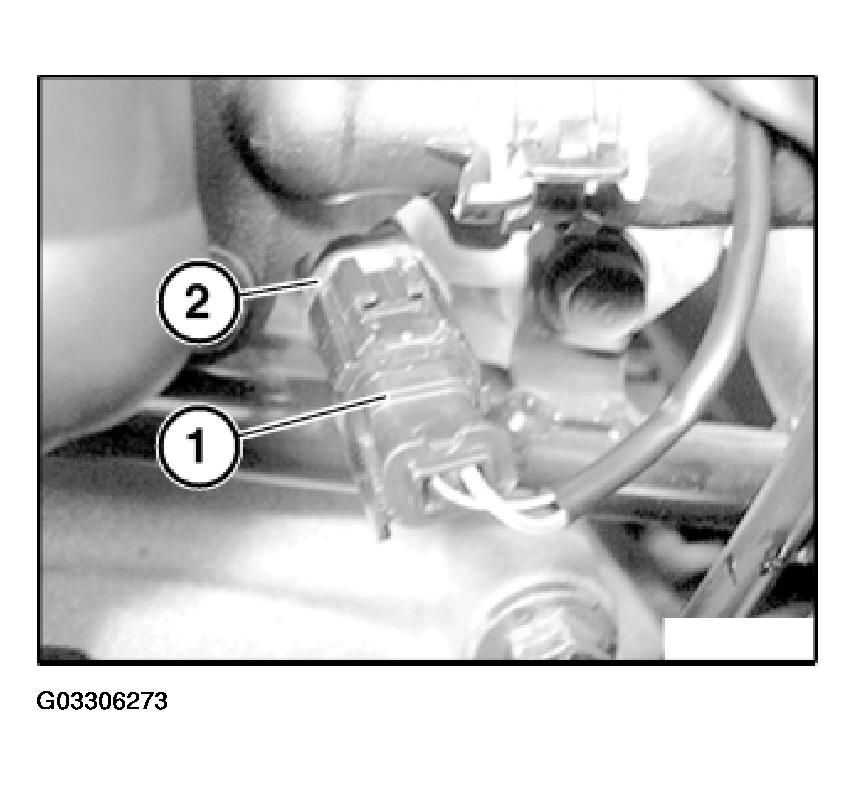

Unlock plug (1) and remove.
Remove coolant temperature sensor (2).
Tightening torque, refer to 12 62 1AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .
Refill and vent cooling system.
NOTE:
Now clear the fault memory.
