11 51 000 Removing and installing or replacing water pump

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see ENGINE - SPECIAL TOOLS - COOPER (1.6L) R50/W10 .

Special Tools Required:

11 8 401
11 8 402

Turn off ignition

Disconnect battery. Refer to 12 00 DISCONNECTING AND CONNECTING BATTERY .

Drain coolant. Refer to 17 00 005 DRAINING AND ADDING COOLANT .

Remove alternator. Refer to12 31 020 REMOVING AND INSTALLING/REPLACING ALTERNATOR .

Lower front end module.

Remove screws (1) from impact tubes.

Remove screws (2) securing impact tubes to chassis subframe and remove impact tubes.

Tightening torque, (22 N.m.).

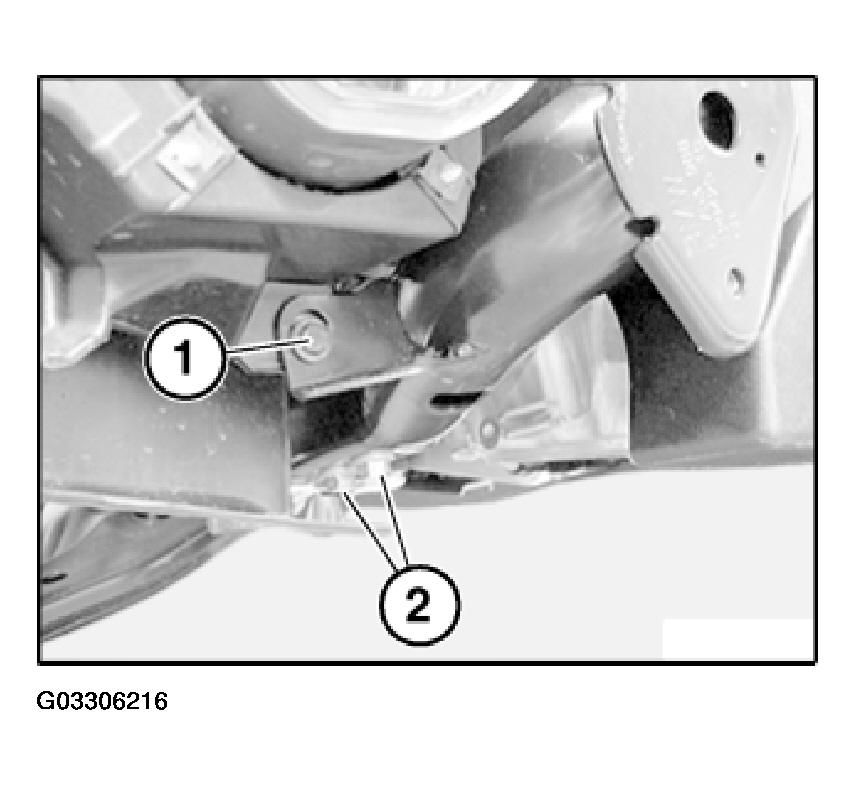

Fig 1: Locating Impact Tubes Retaining Screws

G03306216

Courtesy of BMW OF NORTH AMERICA, INC.

Attach special tools 11 8 401 and 11 8 402.

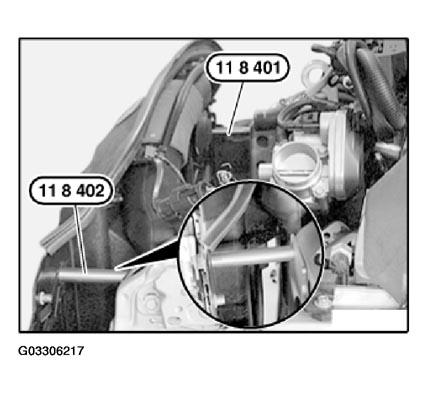

Fig 2: View Of Special Tools 11 8 401 And 11 8 402

G03306217

Courtesy of BMW OF NORTH AMERICA, INC.

Detach hoses (1) from water pump.

Release mountings or remove screws (2).

Remove water pump (3).

Tightening torque, 11 51 1AZ in ENGINE - TIGHTENING TORQUES- COOPER (1.6L) R50/W10 .

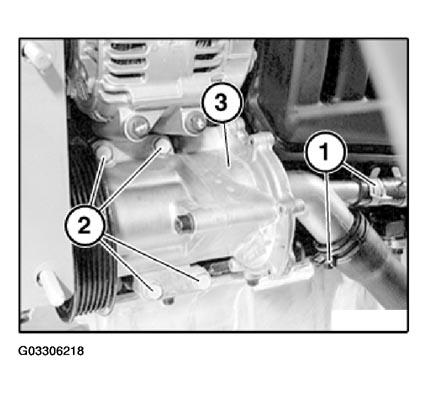

Fig 3: Identifying Water Pump

G03306218

Courtesy of BMW OF NORTH AMERICA, INC.
