Special tools required:
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
- 11 8 280
- 11 8 390
Necessary Preliminary Tasks:
- Remove tank venting valve. Refer to 13 90 500 REPLACING TANK VENTING VALVE .
- Remove underpan. Refer to 51 47 490 REMOVING AND INSTALLING/REPLACING FRONT UNDERBODY PROTECTION (ENGINE) .
WARNING:
Make sure the locking pin is completed inserted in the drive belt clamping fixture (risk of injury).
NOTE:
If the drive belt is to be reused: Mark direction of travel and reinstall drive belt in same direction of travel.

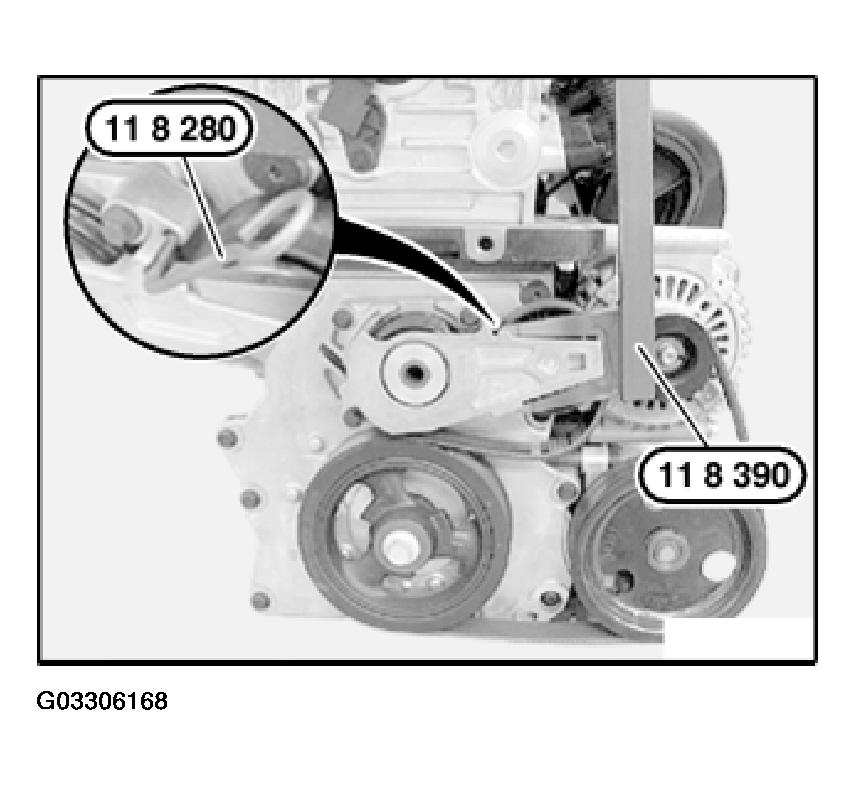

Relieve tension on belt with special tool 11 8 390 and lock belt tensioner with special tool 11 8 280, remove drive belt.
Installation:
Check drive belt for coolant and oil residue and replace if necessary.
Ensure correct installation position (risk of damage).
Assemble engine.
