11 25 671 Replacing piston rings on all pistons (W10/W11)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

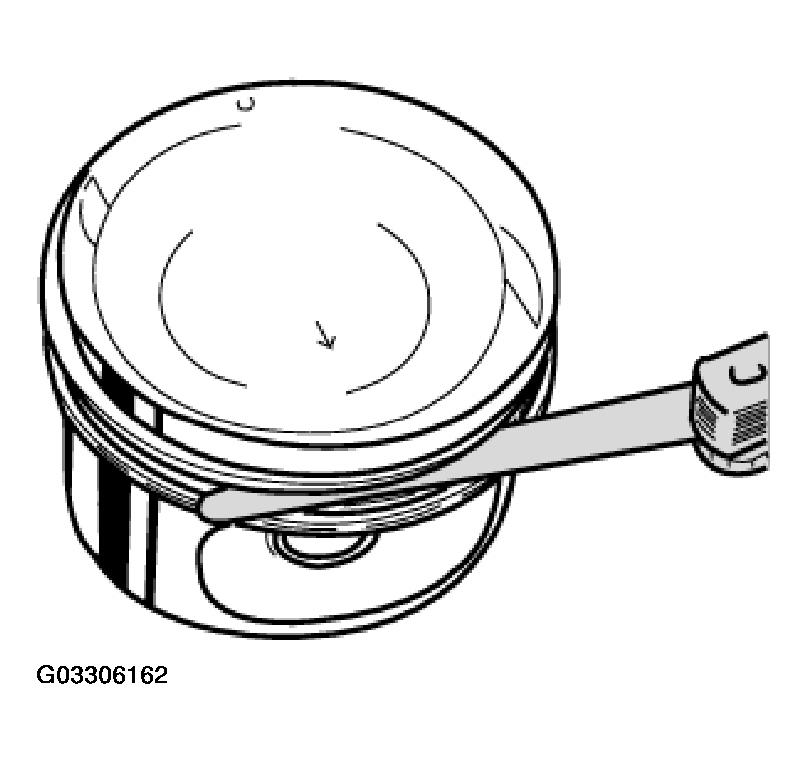

Measuring axial clearance of piston rings in piston ring groove (1 and 2):

Refer to ENGINE - TECHNICAL DATA - COOPER (1.6L) R50/W10 .

NOTE: It is not possible to measure the axial clearance of the oil scraper rings.
Fig 1: Measuring Axial Clearance Of Piston Rings In Piston Ring Groove
G03306162Courtesy of BMW OF NORTH AMERICA, INC.

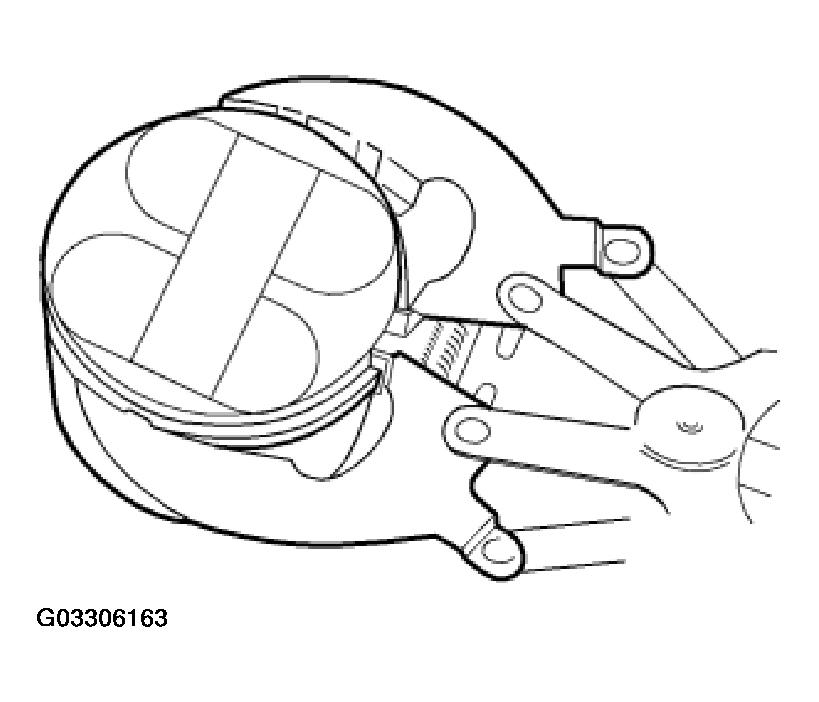

Remove piston rings (1 and 2) with piston ring compressing pliers.

NOTE: It might not be possible to find the identification on used piston rings.

Installation:

Put aside piston rings in correct sequence and installation position.

New pistons may only be installed together with new piston rings.

Fig 2: Removing Piston Rings With Piston Ring Compressing Pliers
G03306163Courtesy of BMW OF NORTH AMERICA, INC.

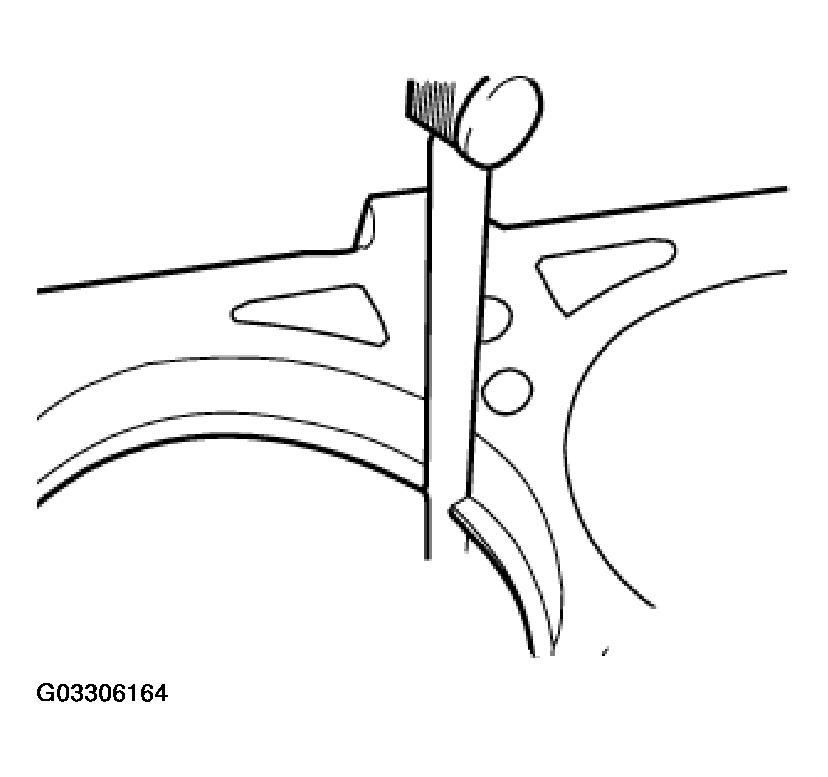

Measure end clearance.

Refer to ENGINE - TECHNICAL DATA - COOPER (1.6L) R50/W10 .

Fig 3: Measuring Piston Ring End Clearance
G03306164Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

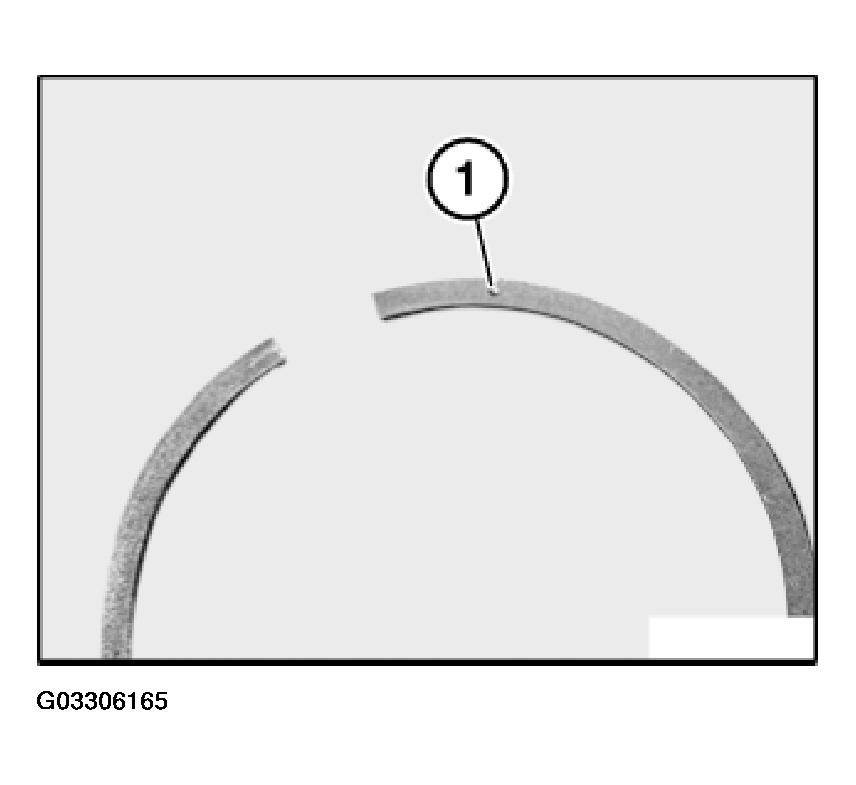

The taper face compression ring "top" is marked with an identification dot (1).

Fig 4: Identifying Marks On Compression Ring Taper Face
G03306165Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Picture shows a schematic representation.

Installation:

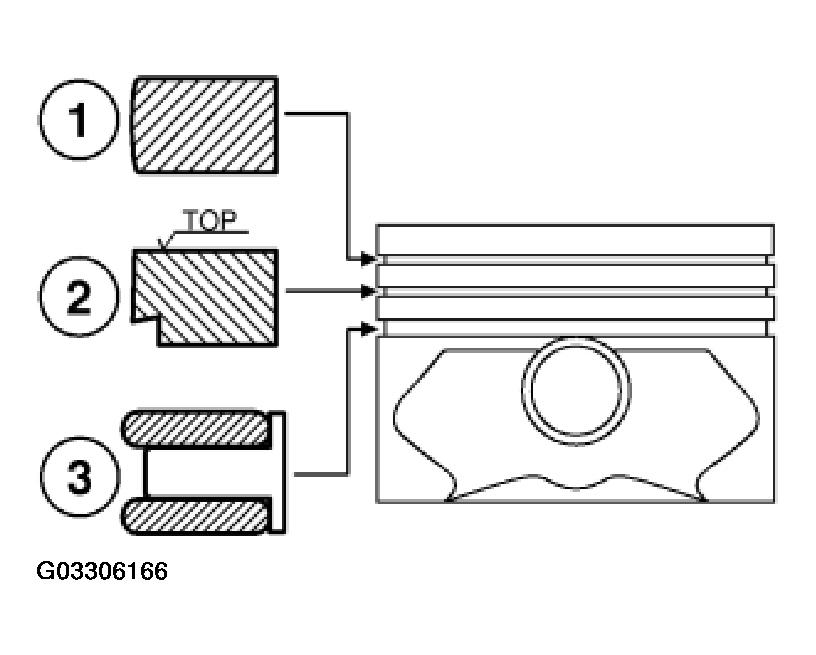

Install piston rings with "identification dot" to piston crown.

  1. Plain compression ring.
  2. Taper face compression ring "identification dot".
  3. Two-part oil scraper ring.

Offset the contact points of the piston rings by approx. 120° to each other but do not position above the piston pin boss.

Fig 5: Identifying Piston Rings Position
G03306166Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

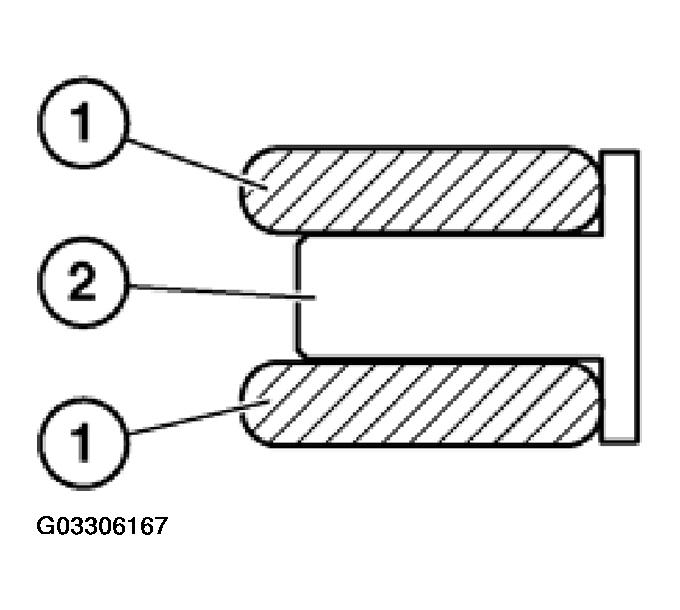

Oil control ring comprises two steel band rings (1) and a support spring (2).

Insert support spring (2) into piston ring groove and then fit steel band rings (1) so that contact points are offset by approx. 120°.

Fig 6: Inserting Support Spring Into Piston Ring Groove
G03306167Courtesy of BMW OF NORTH AMERICA, INC.
