11 40 000 Checking engine oil pressure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see ENGINE- SPECIAL TOOLS - COOPER (1.6L) R50/W10 and FUEL SYSTEM - SPECIAL TOOLS - COOPER (1.6L) R50/W10 .

Special Tools Required:

11 8 360
13 3 061
13 3 063
13 6 051
13 6 054

NOTE: To check engine oil pressure and oil pressure switch, install and connect special tools.

Unscrew oil filter cap; engine oil flows out of oil filter housing into oil sump.

If oil pressure is zero at idle, do not rev engine to 3000 rpm.

Installation:

Replace sealing ring.

Tightening torque, refer to 11 42 1AZ in ENGINE - TIGHTENING TORQUES- COOPER (1.6L) R50/W10 .

Remove oil pressure switch.

Installation:

Tightening torque, 12 61 1AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .

Install special tool 11 8 360 with sealing ring (1) in place of oil pressure switch.

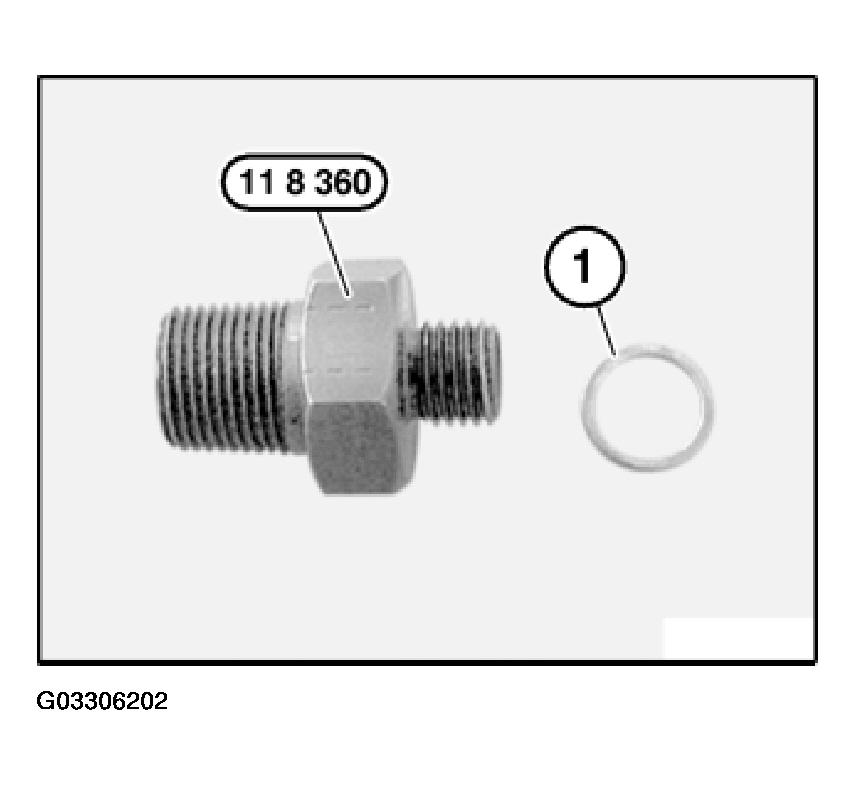

Fig 1: View Of Sealing Ring And Oil Pressure Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Checking Engine Oil Pressure With DIS Tester

Attach special tool 13 6 054 with sealing ring (1) and special tool 13 6 051 and connect to DIS Tester.

Checking Engine Oil Pressure With Pressure Measuring Instrument

Fit special tools 13 3 063 and 13 3 061 (pressure measuring instrument).

Start engine and check engine oil pressure.

Refer to ENGINE - TECHNICAL DATA - COOPER (1.6L) R50/W10 .

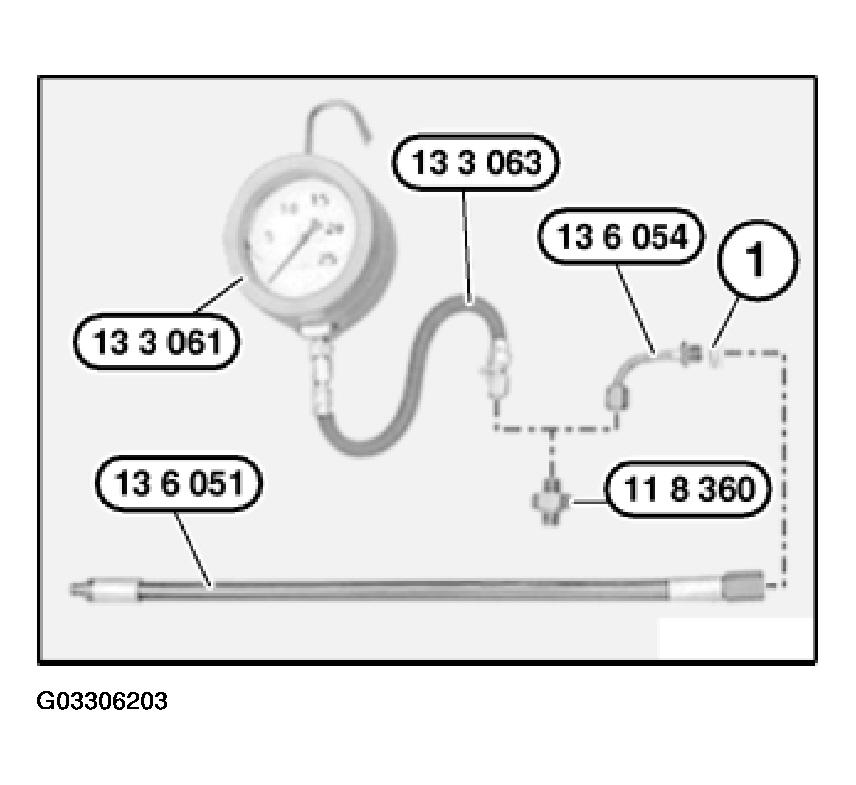

Fig 2: Identifying Pressure Measuring Instrument

Courtesy of BMW OF NORTH AMERICA, INC.
