11 13 000 Removing and installing, sealing or replacing oil sump

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see ENGINE- SPECIAL TOOLS - COOPER (1.6L) R50/W10 .

Special Tools Required:

11 8 401
11 8 402

Switch off ignition.

Disconnect battery. Refer to 12 00 DISCONNECTING AND CONNECTING BATTERY .

Remove alternator drive belt. Refer to 11 28 010 REPLACING ALTERNATOR DRIVE BELT (W10) .

Unscrew and remove splash guard.

CAUTION: When working on oil, coolant or fuel circuit: Make sure no oil, coolant or fuel drips onto the alternator. Cover alternator with suitable material. Otherwise there may be alternator malfunctions.

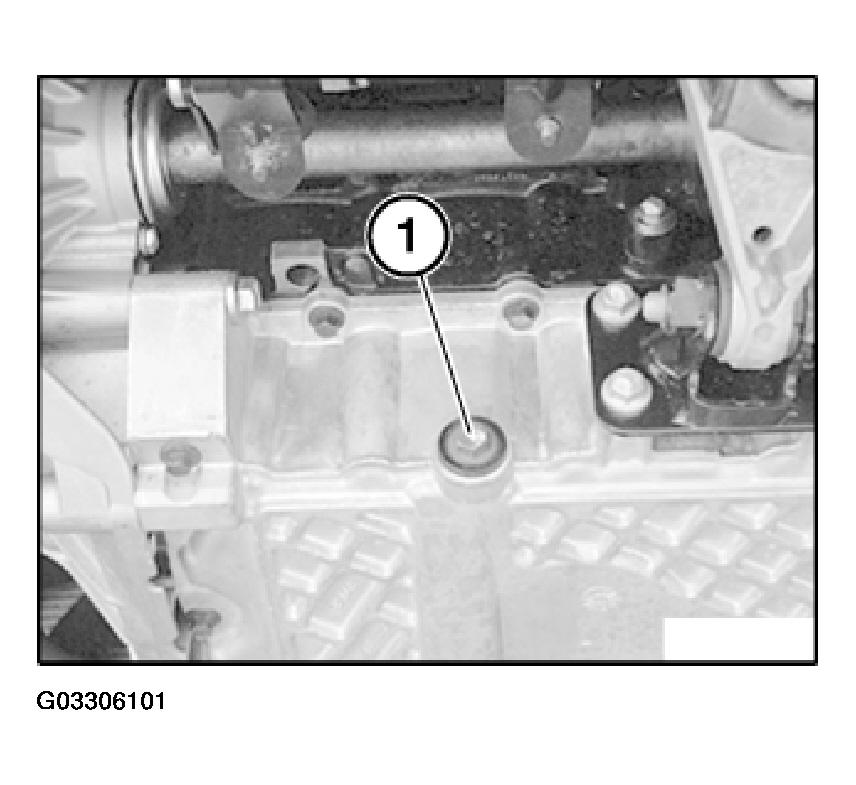

Unscrew oil drain plug (1).

Drain engine oil.

Tightening torque, 11 13 1AZ in ENGINE - TIGHTENING TORQUES- COOPER (1.6L) R50/W10 .

Top up engine oil.

Start engine and run until oil indicator lamp goes out.

Switch off engine and wait approx. 5 minutes.

Check engine oil level.

Top up if necessary.

Fig 1: Unscrewing Oil Drain Plug

G03306101

Courtesy of BMW OF NORTH AMERICA, INC.

Remove impact tube.

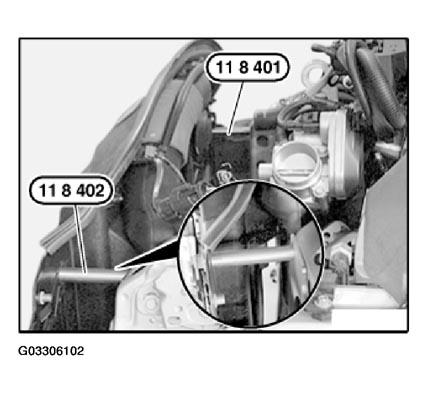

Lower front end module and fit special tools 11 8 401 and 11 8 402.

Fig 2: View Of Front End Module

G03306102

Courtesy of BMW OF NORTH AMERICA, INC.

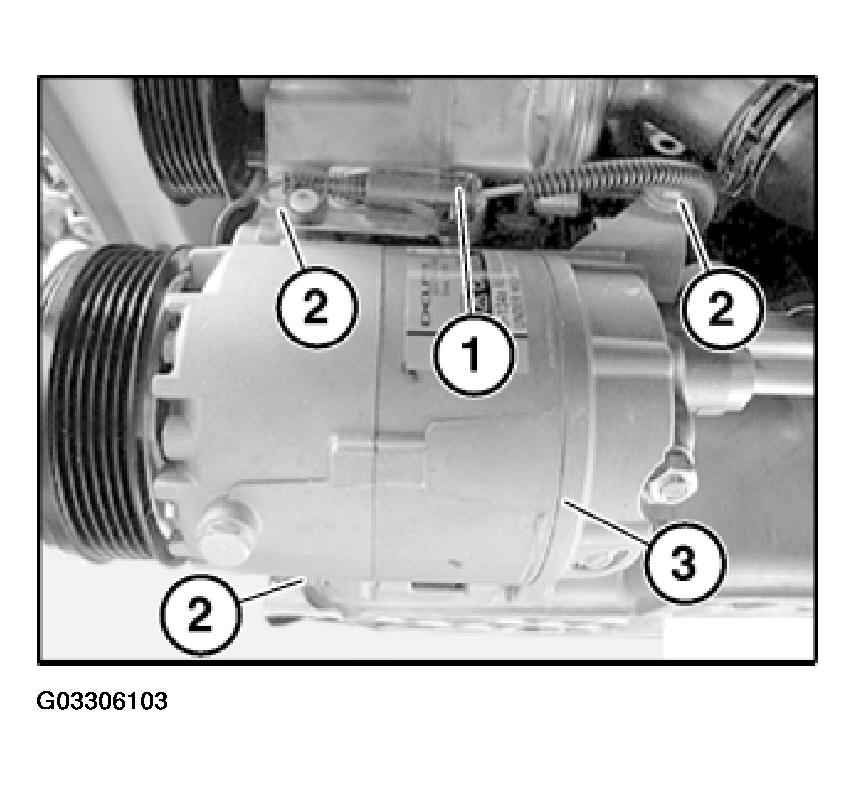

Detach plug connector from A/C compressor (1).

Remove retaining screws (2) of A/C compressor and lower compressor (3).

Secure compressor to front end module.

Unclip high-pressure line of A/C system.

Tightening torque, refer to 64 52 1AZ in HEATING AND AIR CONDITIONING - TIGHTENING TOR .

Fig 3: Removing A/C Compressor

G03306103

Courtesy of BMW OF NORTH AMERICA, INC.

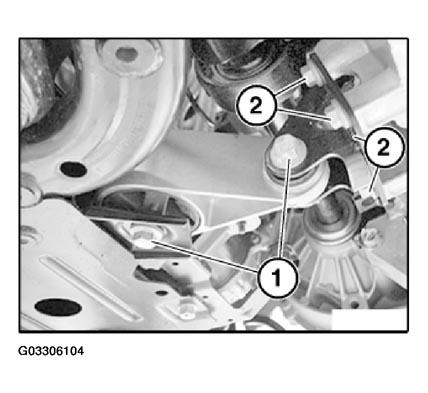

Remove screws (1) of lower stabilizer bar and remove stabilizer bar.

Remove retaining screws (2) and remove bracket from oil sump.

Tightening torque, refer to 11 12 16AZ in ENGINE - TIGHTENING TORQUES .

Tightening torque, refer to 11 12 19AZ in ENGINE - TIGHTENING TORQUES- COOPER (1.6L) R50/W10 .

Fig 4: Removing Stabilizer Bar

G03306104

Courtesy of BMW OF NORTH AMERICA, INC.

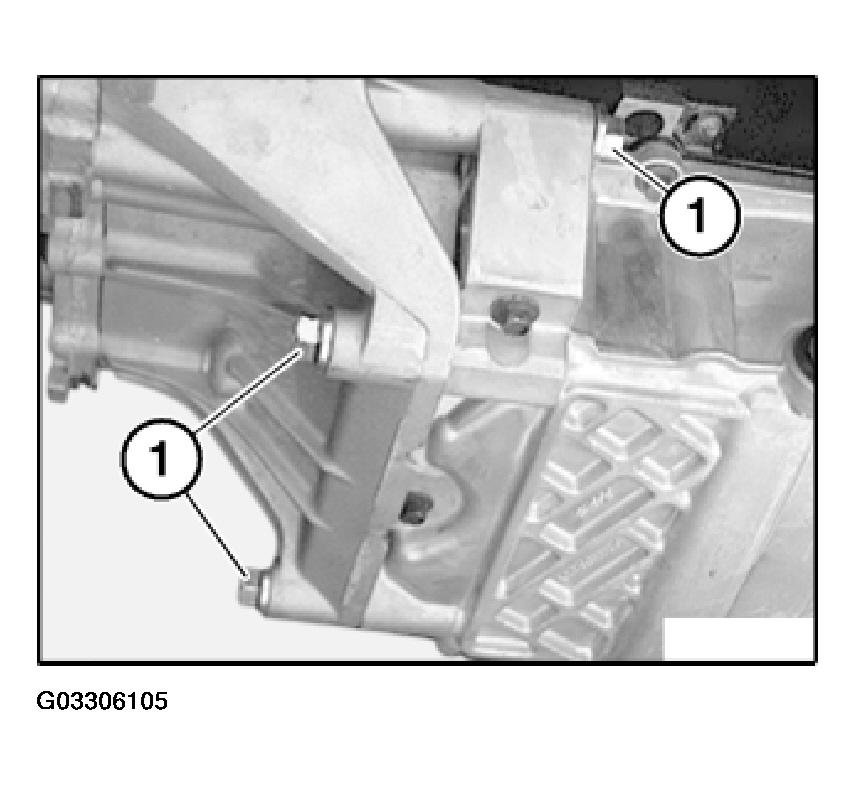

Remove retaining screws (1) for transmission.

Fig 5: Removing Retaining Screws For Transmission

G03306105

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Two shorter screws are inserted into oil sump. Tightening torque, (85 N.m.).

Installation:

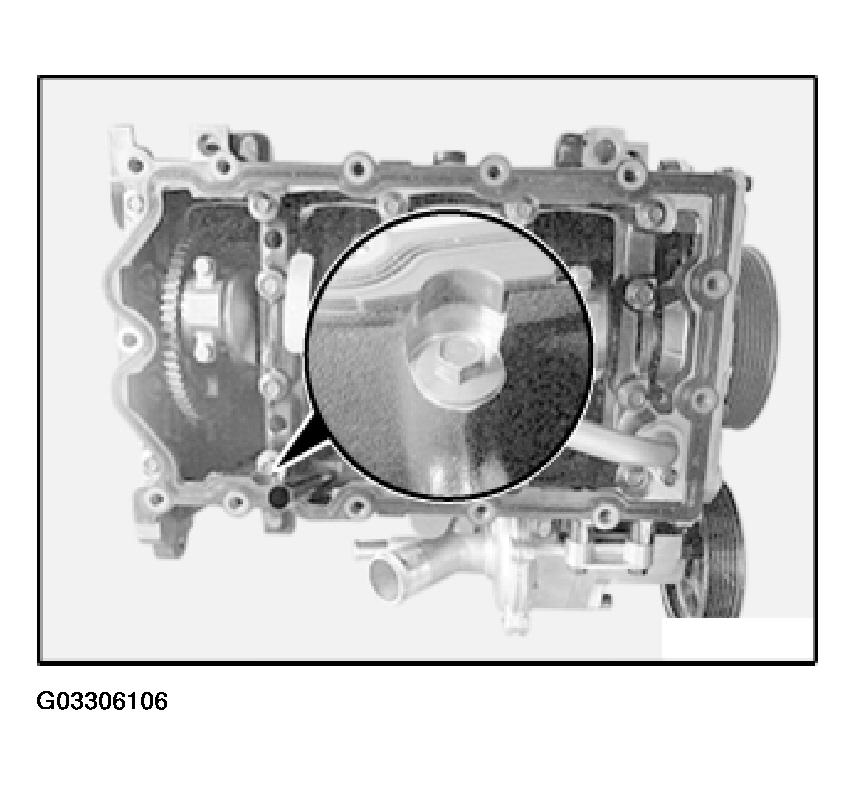

Clean mating surfaces of oil sump and cylinder block and check for damage.

Replace gasket.

Fig 6: Identifying Mating Surfaces Of Oil Sump And Cylinder Block

G03306106

Courtesy of BMW OF NORTH AMERICA, INC.

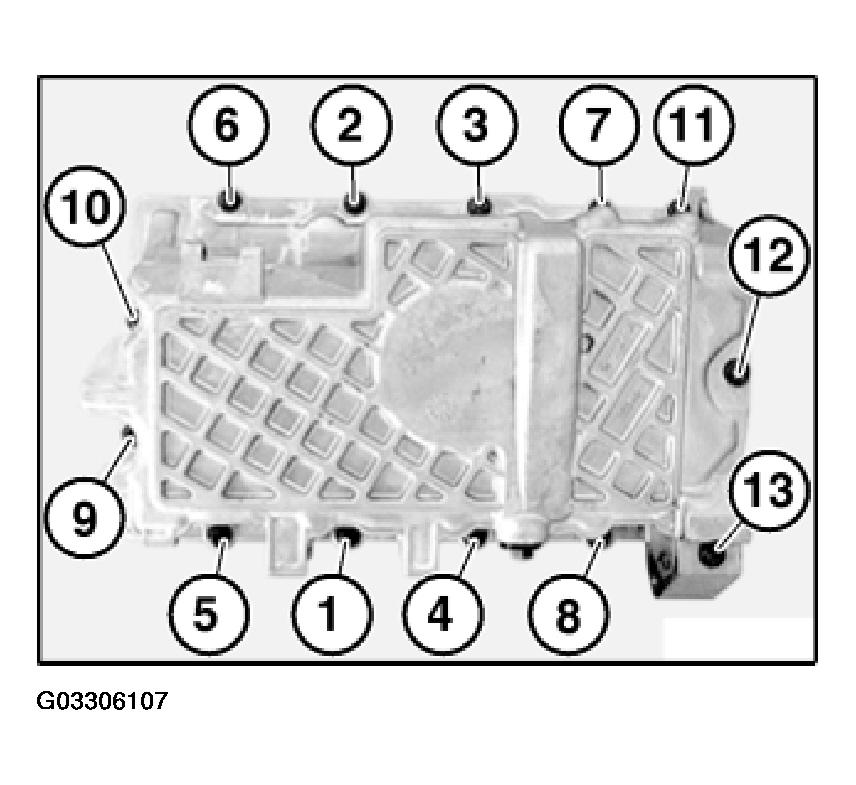

Remove oil sump screws in specified sequence (13-1) and remove oil sump.

Tighten down oil sump screws in specified sequence (1-13).

Tightening torque, refer to 11 13 2AZ in ENGINE - TIGHTENING TORQUES- COOPER (1.6L) R50/W10 .

Fig 7: Identifying Tightening Sequence Of Oil Sump Screws

G03306107

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Position gasket in accordance with alignment lugs.
