11 43 000 Removing and installing/replacing oil dipstick guide tube

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove intake manifold. Refer to 11 61 051 REMOVING AND INSTALLING INTAKE MANIFOLD .

Remove retaining screw (1) of guide tube.

Remove guide tube (2).

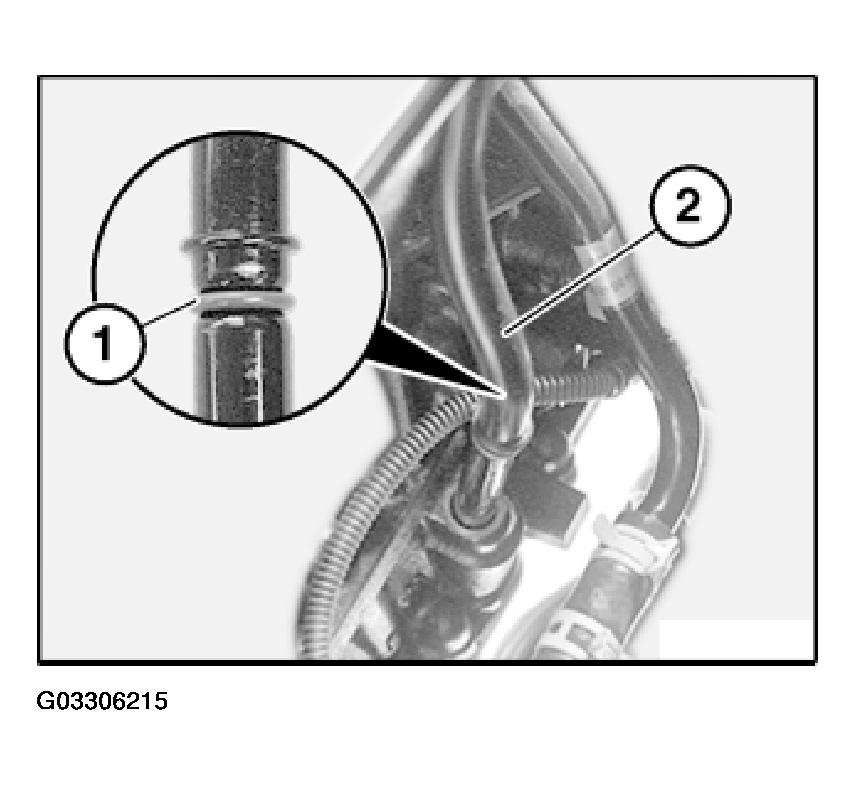

Fig 1: Removing Guide Tube

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace seal (1).

Coat sealing ring (1) with Syntheso Glep 1.

Insert guide tube (2) in cylinder head.

Tightening torque, 11 61 1AZ in ENGINE - TIGHTENING TORQUES- COOPER (1.6L) R50/W10 .

Make sure guide tube and gasket are correctly seated.

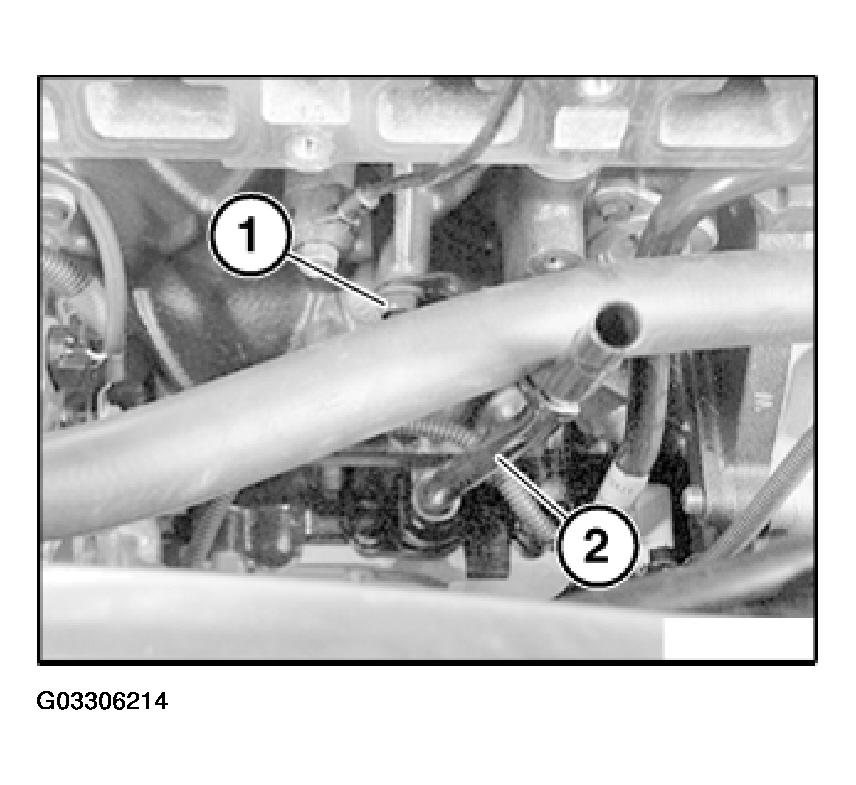

Fig 2: View Of Guide Tube In Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
