11 15 025 Removing or replacing engine vent valve
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

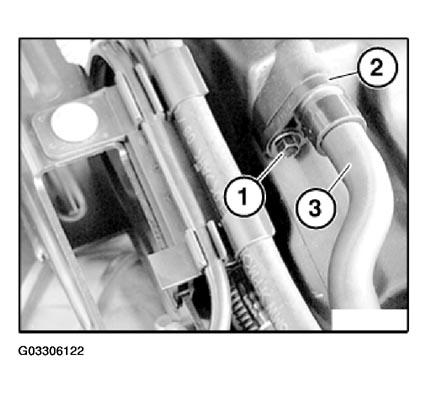

Remove retaining screw (1) and valve (2).
Disconnect hose (3 from valve.
Installation Note:
Apply a thin coating of clean engine oil to O-ring.
Tightening torque, refer to 11 12 18AZ in ENGINE - TIGHTENING TORQUES- COOPER (1.6L) R50/W10 .
