51 3 030 Installation kit

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For bonding windscreen and rear window

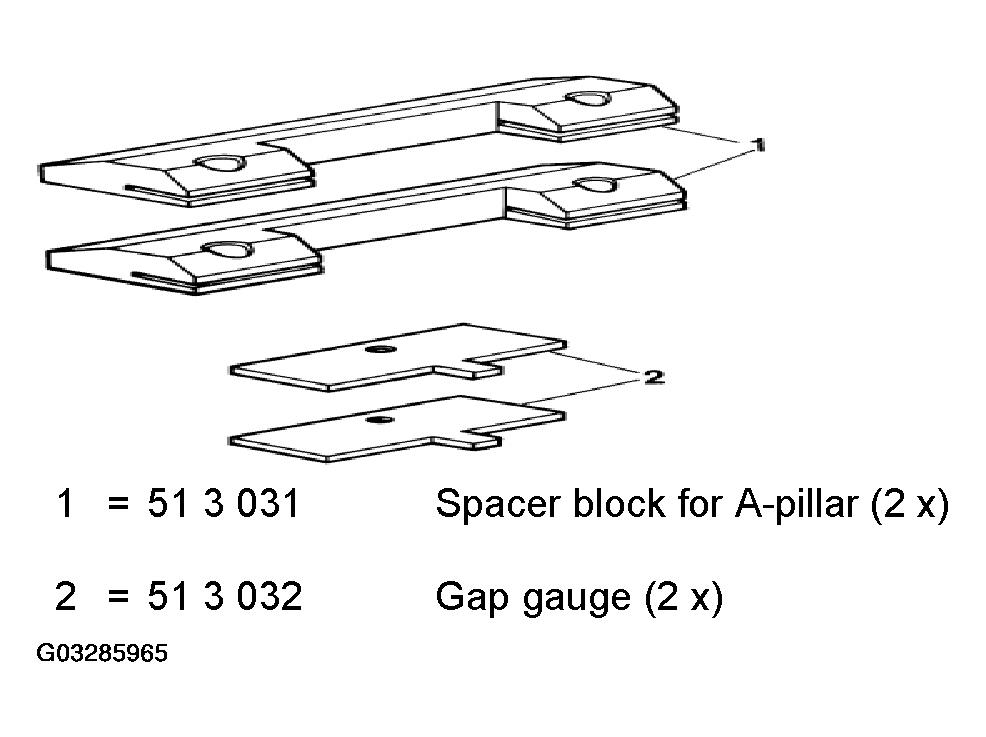

Fig 1: Identifying Installation Kit

Courtesy of BMW OF NORTH AMERICA, INC.

Series: E36, E60, E63, E65, E66, RR1

Storage location: B26

SI number: 1 10 90(288)

Order number: 51 3 030

Installation kit

Consisting of:

1 = 51 3 031 Spacer block for A-pillar (2 x)

NOTE: Model series: RR1

2 = 51 3 032 Gap gauge (2 x)

NOTE: Model series: RR1, E60
