Minimum set: Mechanical tools

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For removing and installing window glass

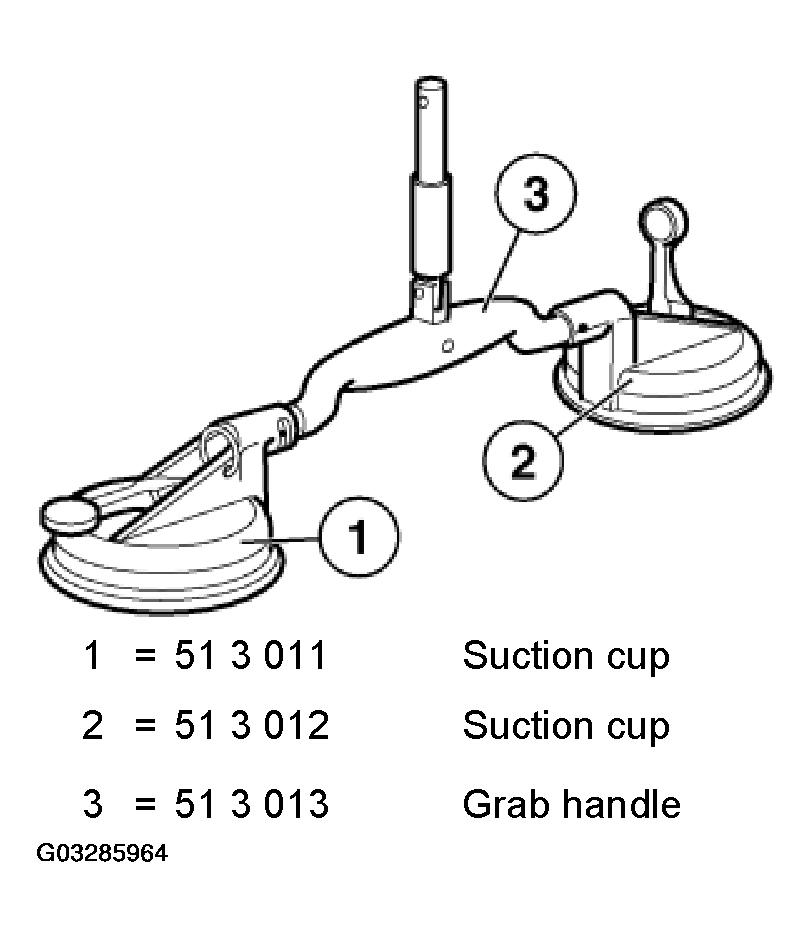

Fig 1: Identifying Suction Lift (2 X)

Courtesy of BMW OF NORTH AMERICA, INC.

Series: E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, R50, R52, R53, RR1

SI number: 1 05 86(604)

Order number: 51 3 010

Suction lift (2 x)

Consisting of:

1 = 51 3 011 Suction cup

NOTE: With elongated hole, suspension moveable about all axes

2 = 51 3 012 Suction cup

NOTE: With bore, suspension only moveable in longitudinal direction

3 = 51 3 013 Grab handle
