36 1 250 Wheel hub grinder

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For cleaning wheel hubs

Series: E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, R50, R52, R53

SI number: 1 15 03 (005)

Order number: 36 1 250

Wheel hub grinder

Consisting of:

1 = 36 1 251 Basic body

NOTE: Basic body with mounting screws (slotted pan-head screw)

2 = 36 1 252 Grinding wheel

3 = 36 1 253 Slotted pan-head screw (3 x)

NOTE: For securing grinding wheel on basic body

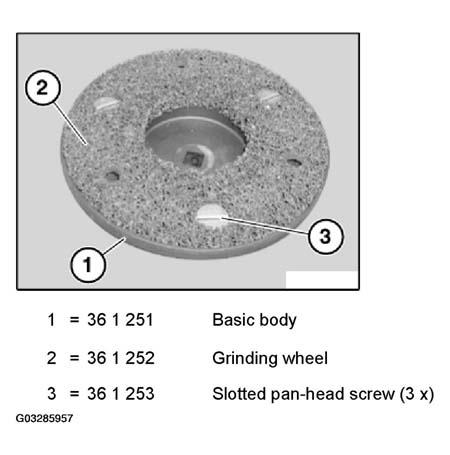

Fig 1: Identifying Wheel Hub Grinder
G03285957Courtesy of BMW OF NORTH AMERICA, INC.
