Minimum set: Mechanical tools

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Series: E52, E60, E61, E63, E64, E65, E66, E83, E85, E87, E90, R50, R52, R53

Storage location: Single

SI number: 1 19 00 (634)

Order number: 36 1 090

Installation accessory for run-flat tires

Consisting of:

1 = 36 1 091 Tire iron

2 = 36 1 092 Plastic shoe for tire iron

3 = 36 1 093 Bead hold-down element, basic device

4 = 36 1 094 Shaped section

5 = 36 1 095 Shaped section

6 = 36 1 096 Lock pin

7 = 36 1 097 Centering

8 = 36 1 098 Hose

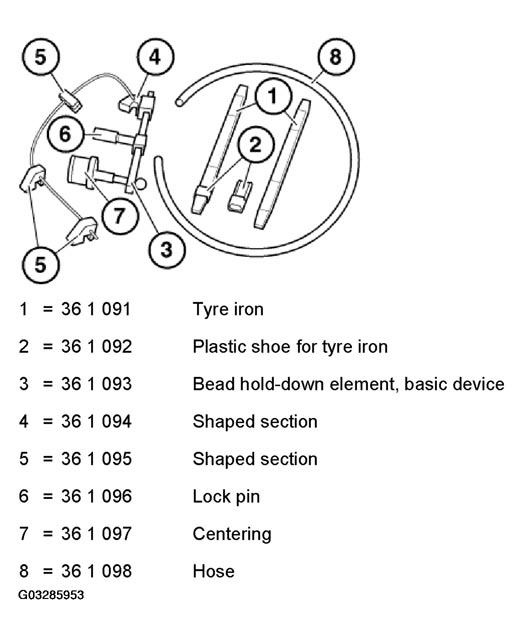

Fig 1: Identifying Installation Accessory For Run-Flat Tires
G03285953Courtesy of BMW OF NORTH AMERICA, INC.
