Minimum set: Mechanical tools

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For measuring oil and fuel pressures

Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47T2, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M70, M73, M88, N40, N42, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, W10, W11, W17

Storage location: A16, B16

SI number: 1 12 94 (859)

Order number: 13 6 050

Set of adapters for BMW DIS

Consisting of:

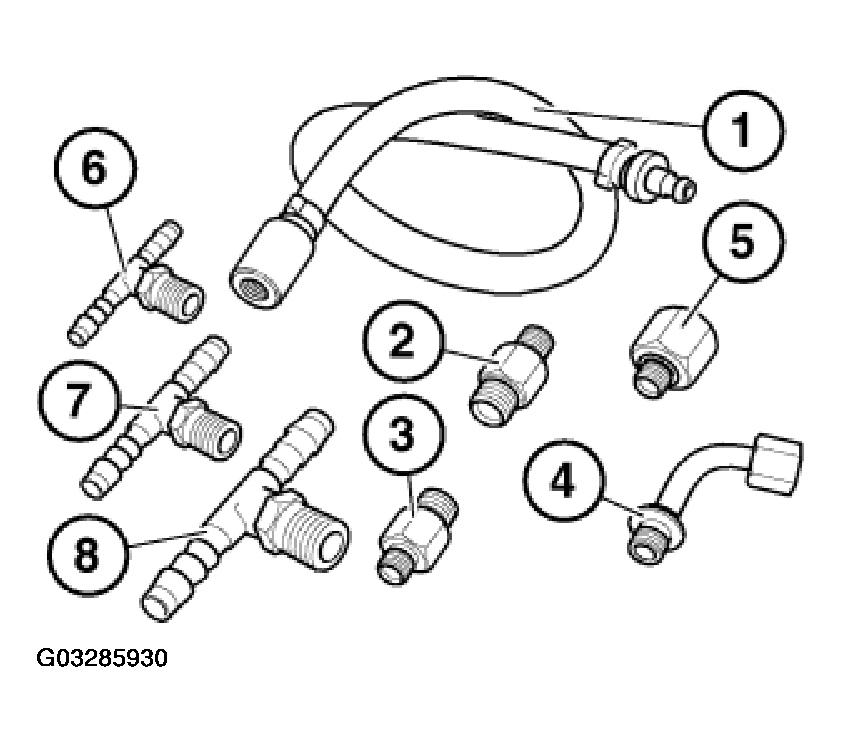

Fig 1: Identifying Set Of Adapters For BMW DIS

Courtesy of BMW OF NORTH AMERICA, INC.

1 = 13 6 051 Connecting hose

NOTE: For connecting reducers 13 6 052, 13 6 053, 13 6 55 and adapters 11 4 050, 11 4 160, 11 4 170, 13 5 131 to BMW DIS

2 = 13 6 052 Reducer

NOTE: For pipe elbows 24 0 023, 24 0 024, 24 0 140

In conjunction with: 13 6 051

3 = 13 6 053 Reducer for adapter 16 1 300

In conjunction with: 13 6 051

4 = 13 6 054 Pipe elbow

In conjunction with: 13 6 051, 11 4 050

5 = 13 6 055 Reducer for T-pieces 13 6 056 and 13 6 057

In conjunction with: 13 6 051

6 = 13 6 056 T-piece for 6 mm dia. line

7 = 13 6 057 T-piece for 8 mm dia. line
