65 5 010 Test kit
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2003 BMW 540i, 2003 BMW 530i, 2003 BMW 525i, 2002 BMW 540i, and 2002 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL DESIGNATION
| In conjunction with: | 61 0 000 or BMW DIS |
| Note: | For on-board monitor and navigation system, Global Position System - GPS |
| Series: | E38, E39 |
| Storage location: | G 113, G 114, G 115 |
| SI number: | 2 06 94(862) |
| Order number: | 65 5 010 |

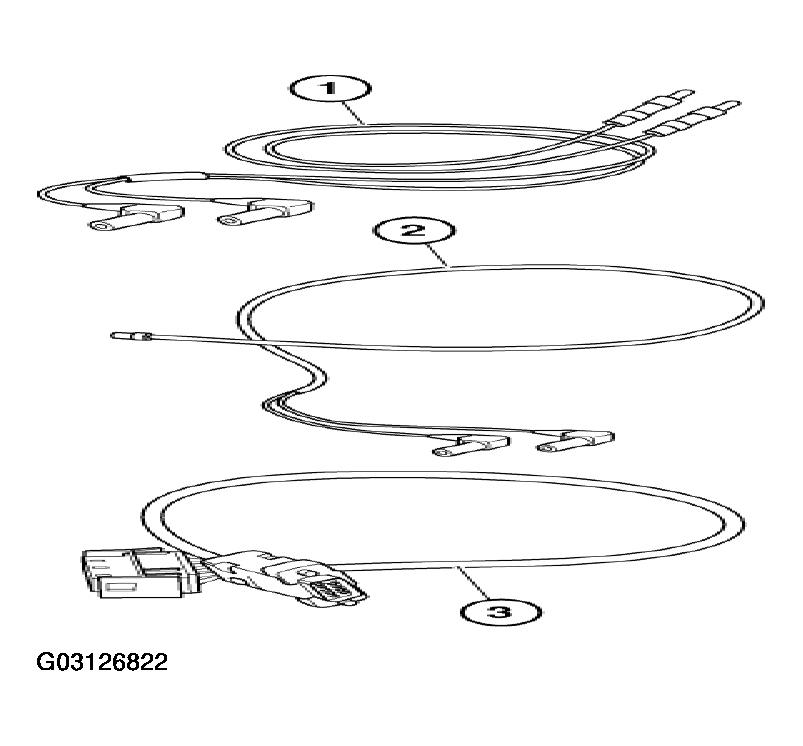

| Test kit | |
| Consisting of: | |
| 1 = 65 5 011 | Test line |
|
NOTE:
For testing wiring harness to navigation computer
|
|
| 2 = 65 5 012 | Test lead for GPS |
|
NOTE:
For testing antenna input at GPS receiver module
|
|
| 3 = 65 5 013 | Adapter lead for GPS |
|
NOTE:
For testing and troubleshooting in navigation system - magnetic field probe
|
