64 5 100 Set of sealing adapters
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2003 BMW M5, 2003 BMW 540i, 2003 BMW 530i, 2003 BMW 525i, and 2002 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL DESIGNATION

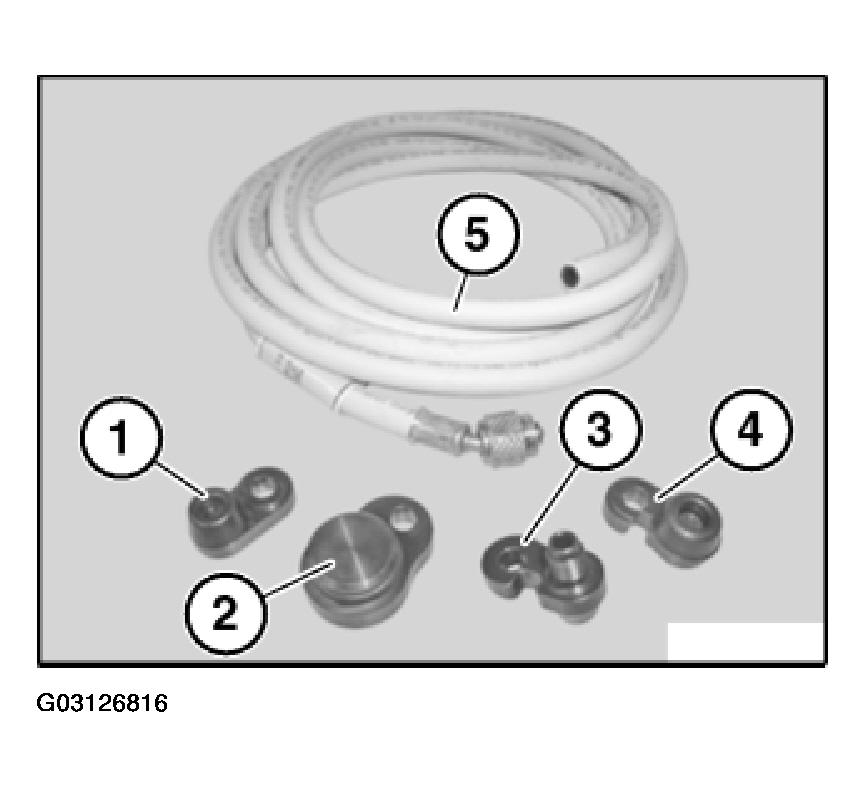

| Note: | For closing off line flanges of A/C components (evaporator, condenser, compressor) for leak testing. Set consists of (see Fig.): 1 = 64 5 102" 2 = 64 5 103" 3 = 64 5 105 (replaces 64 5 10)" 4 = 64 5 106 (from 01/2005)" 5 = 64 5 104 |
| Series: | E32, E34, E36, E38, E39, E46, E53, E64, E83 |
| SI number: | 1 17 98(359) |
| Order number: | 64 5 100 |
| Set of sealing adapters | |
| Consisting of: | |
| 1 =64 5 101 | Filler adapter |
|
NOTE:
Replaced by 64 5 105 (from 01/2005)
|
|
| 2 = 64 5 102 | Sealing adapter |
|
NOTE:
For sealing off suction line
|
|
| 3 = 64 5 103 | Sealing adapter |
|
NOTE:
For sealing off suction connection on compressor
|
|
| 4 = 64 5 104 | Connecting hose |
|
NOTE:
For connecting pressure bottle to filler adapter
|
|
| 5 = 64 5 105 | Filler adapter |
|
NOTE:
For sealing off pressure line and connection on connecting hose (has replaced special tool SWZ 64 5 101 since 01/2005)
|
|
| 6 = 64 5 106 | Sealing adapter |
|
NOTE:
Sealing adapter for sealing off leak-testing line (from 01/2005 in scope of delivery)
|
