64 1 450 Spray unit
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2003 BMW M5, 2003 BMW 540i, 2003 BMW 530i, 2003 BMW 525i, and 2002 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL DESIGNATION
| In conjunction with: | Pressure vessel spray gun, manufacturer: SATA (81 45 9 429 217) |
| Note: | For cleaning and disinfecting evaporator in A/C system |
| Series: | E39, E46, E53, E83 |
| SI number: | 1 22 00(648) |
| Order number: | 64 1 450 |
| Spray unit | |

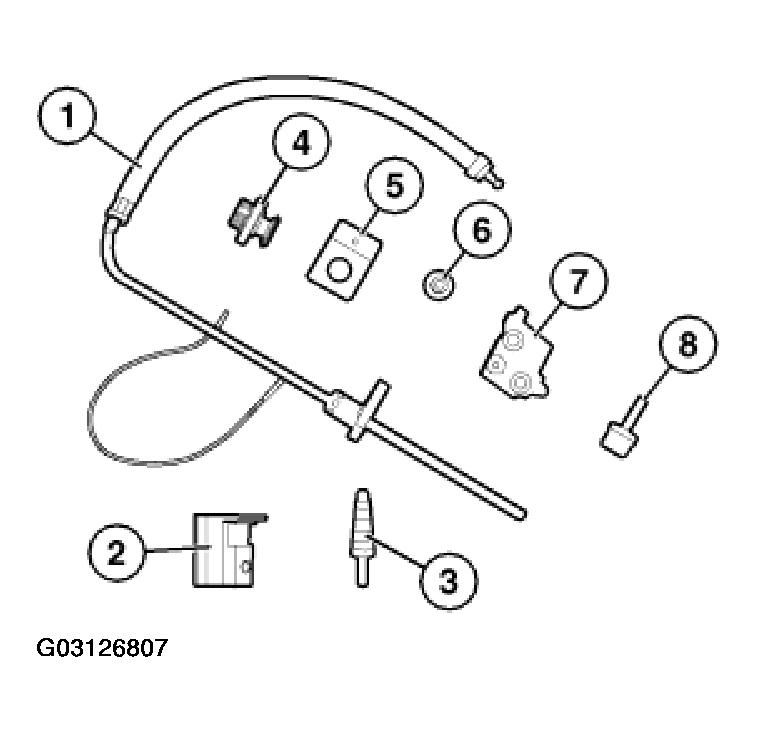

| Consisting of: | |
| 1 = 64 1 451 | Spray lance |
| 2 = 64 1 452 | Drilling hole template |
|
NOTE:
Model series: E39, E53 IHKA
|
|
| 3 = 64 1 453 | Center bit |
|
NOTE:
Model series: E39, E53 IHKA
|
|
| 4 = 64 1 454 | Guide |
|
NOTE:
Model series: E39, E53 IHKA
|
|
| 5 = 64 1 455 | Positioner |
|
NOTE:
Model series: E39, E53 IHKA
|
|
| 6 = 64 1 456 | Retaining screw |
|
NOTE:
Model series: E39, E53 IHKA
|
|
| 7 = 64 1 457 | Adapter |
|
NOTE:
Model series: E46 IHKA/ R Model series: E39, E53 IHKR
|
|
| 8 = 64 1 458 | Seal plug |
|
NOTE:
Model series: E46 IHKA/ R Model series: E39, E53 IHKR
|
