54 3 170 Locating pins (2)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2003 BMW M5, 2003 BMW 540i, 2003 BMW 530i, 2003 BMW 525i, and 2002 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

MINIMUM SET: MECHANICAL TOOLS 54 3 170 LOCATING PINS (2)

Note:	For blocking bracket on sunroof (glass and steel)
Series:	E38, E39
Storage location:	B19
SI number:	1 10 96(097)
Order number:	54 3 170
	Locating pins (2)

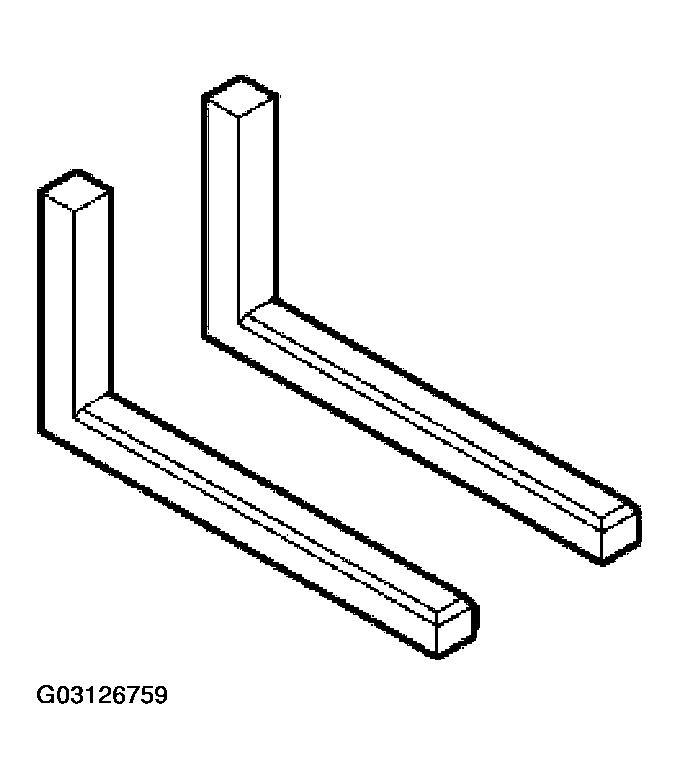

Fig 1: Identifying 54 3 170 Locating Pins (2)

Courtesy of BMW OF NORTH AMERICA, INC.
