51 3 040 Fixture

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2003 BMW M5, 2003 BMW 540i, 2003 BMW 530i, 2003 BMW 525i, and 2002 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
FIXTURE SPECIFICATION

In conjunction with: 51 3 010
Note: For pressing bonded windows
Series: E32, E34, E39
Order number: 51 3 040
  Fixture
Consisting of:
1 = 51 3 041 Cross tube
2 = 51 3 042 Positioning lugs
3 = 51 3 043 Star-type screw
4 = 51 3 044 Lashing strap
5 = 51 3 045 Hook

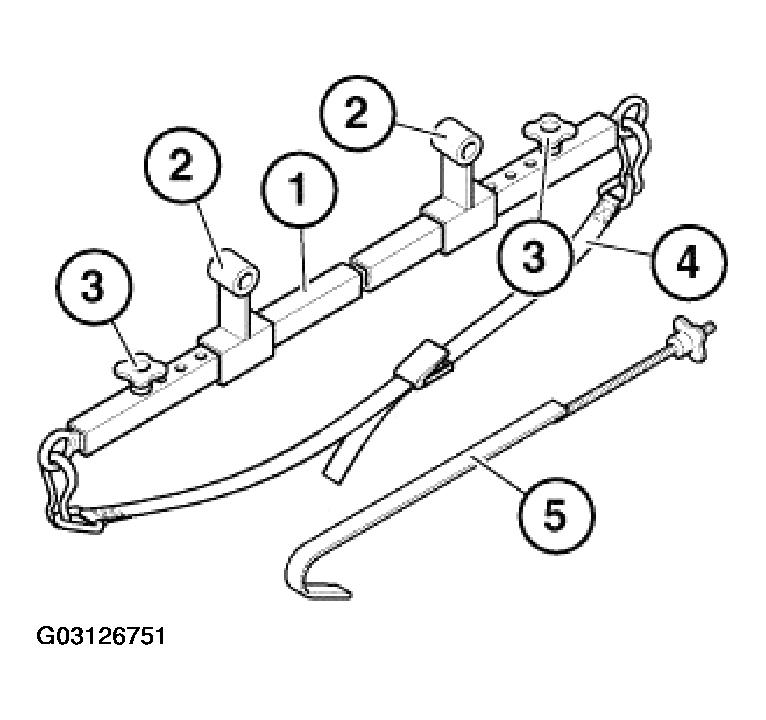

Fig 1: Identifying 51 3 040 Fixture
G03126751Courtesy of BMW OF NORTH AMERICA, INC.
