51 3 010 Suction lift (2 x)
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2003 BMW M5, 2003 BMW 540i, 2003 BMW 530i, 2003 BMW 525i, and 2002 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools
SUCTION LIFT (2 X) SPECIFICATION
| Note: | For removing and installing window glass |
| Series: | E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, R50, R52, R53, RR1 |
| SI number: | 1 05 86(604) |
| Order number: | 51 3 010 |
| Suction lift (2 x) | |

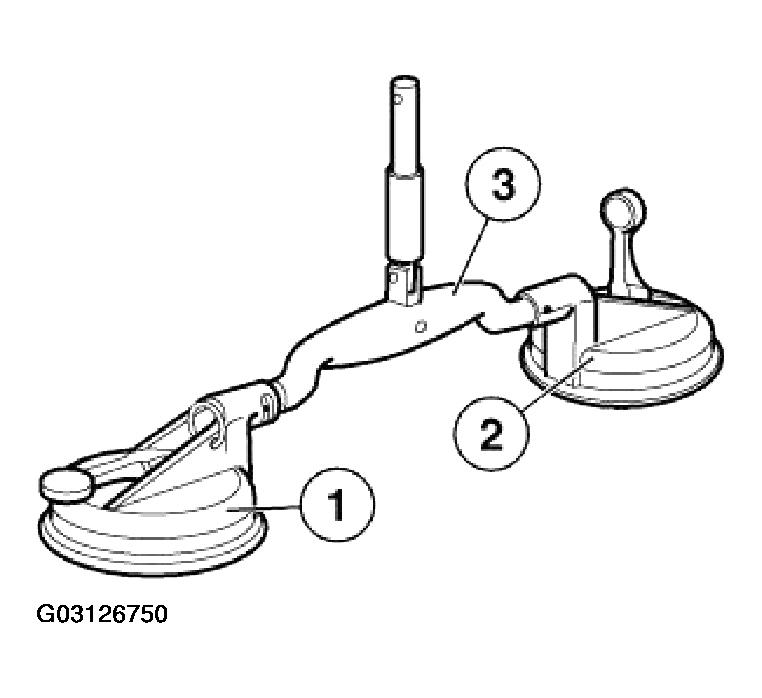

| Consisting of: | |
| 1 = 51 3 011 | Suction cup |
|
NOTE:
With elongated hole, suspension moveable about all axes
|
|
| 2 = 51 3 012 | Suction cup |
|
NOTE:
With bore, suspension only moveable in longitudinal direction
|
|
| 3 = 51 3 013 | Grab handle |
