23 4 020 Drifts
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2003 BMW M5, 2003 BMW 540i, 2003 BMW 530i, 2003 BMW 525i, and 2002 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS DESCRIPTIONS
| Note: | For driving in bearing bushings for locking pins, 5th and reverse gears. |
| Transmission: | GS5-39DZ, S5D 320Z |
| Storage location: | B49 |
| SI number: | 1 03 04 (070) |
| Order number: | 23 4 020 |
| Drifts | |

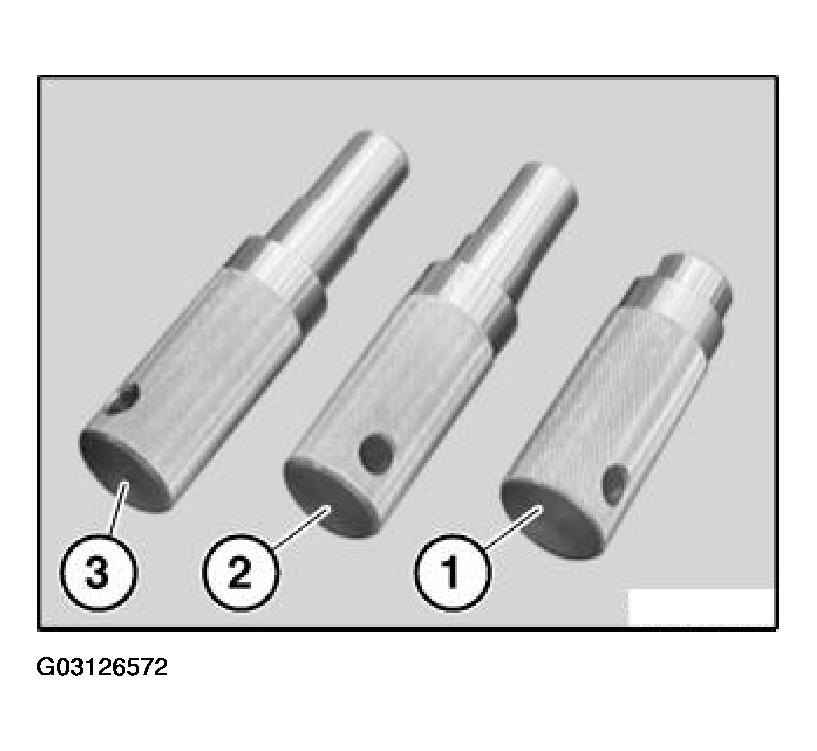

| Consisting of: | |
| 1 = 23 4 021 | Drift |
|
NOTE:
For driving in cover caps on gear notch, 5th and reverse gears.
|
|
| 2 = 23 4 022 | Drift |
|
NOTE:
For driving in bearing bushing for locking pin, 5th gear.
|
|
| 3 = 23 4 023 | Drift |
|
NOTE:
For driving in bearing bushing for locking pin, reverse gear.
|
