23 2 060 Rillex ball bearing extractor 6306
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2003 BMW M5, 2003 BMW 540i, 2003 BMW 530i, 2003 BMW 525i, and 2002 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS DESCRIPTIONS
| Note: |
For removing deep groove ball bearing of input and output shaft |
| Transmission: |
242/4, 262/4 |
| Order number: |
23 2 060 |
| |

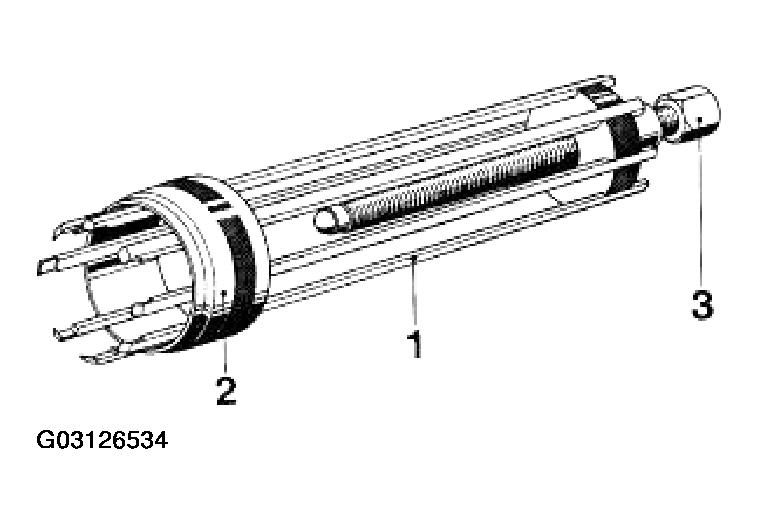

Rillex ball bearing extractor 6306 |
| Consisting of: |
|
| 1 = 23 2 061 |
Claw for Rillex 6306 (8) |
| 2 = 23 2 062 |
Union sleeve |
| 3 = 23 2 063 |
Pressure spindle |
Courtesy of BMW OF NORTH AMERICA, INC.
