23 2 010 Rillex ball bearing extractor 6206 E
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2003 BMW M5, 2003 BMW 540i, 2003 BMW 530i, 2003 BMW 525i, and 2002 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS DESCRIPTIONS
| Note: | 8 balls with plastic cage - for removing deep groove ball bearing of transmission input shaft |
| Transmission: | 242/4, 245/5Sport, 265/5 |
| Order number: | 23 2 010 |

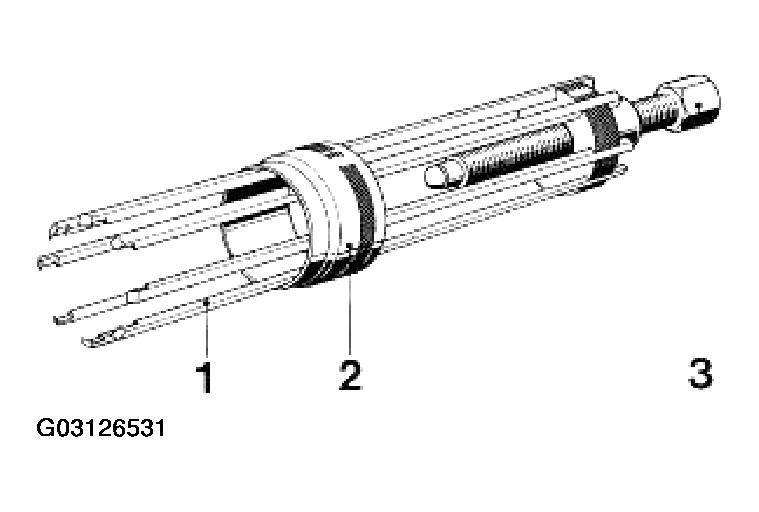

| Rillex ball bearing extractor 6206 E | |
| Consisting of: | |
| 1 = 23 2 011 | Claw for Rillex 6206 E (8) |
| 2 = 23 2 012 | Union sleeve |
| 3 = 23 2 013 | Pressure spindle |
