13 6 200 Ultrasonic cleaning system
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2003 BMW M5, 2003 BMW 540i, 2003 BMW 530i, 2003 BMW 525i, and 2002 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
ULTRASONIC CLEANING SYSTEM SPECIFICATION
| Note: | For fuel injectors complete with special detergent |
|---|---|
| Engine: | M10, M20, M21, M30, M40, M41, M42, M43, M44, M50, M51, M52, M54, M60, M62, M70, M73, M88, N42, N46, S14, S38, S50B30, S50B32, S50US, S52US |
| Storage location: | Single |
| SI number: | 2 01 87(623) |
| Order number: | 13 6 200 |

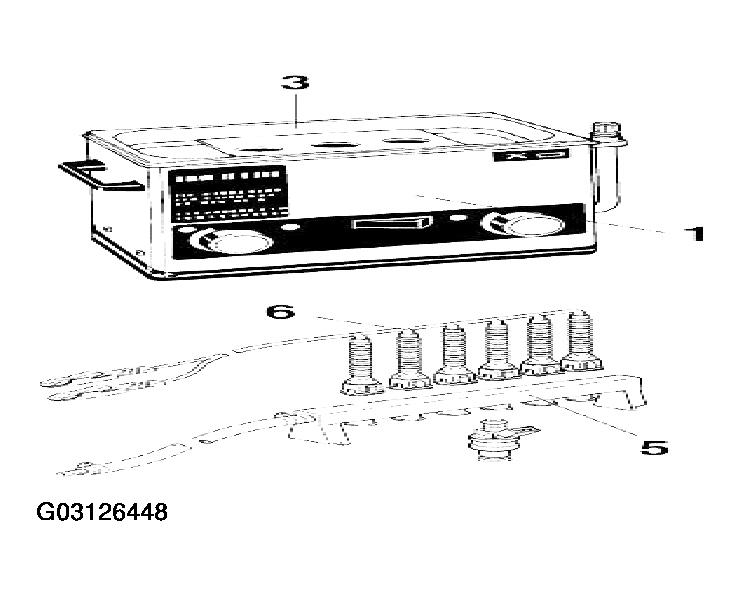

| Ultrasonic cleaning system | |
| Consisting of: | |
| 1 = 13 6 201 | Ultrasonic cleaning unit |
|
NOTE:
Without special cleaner
|
|
| 3 = 13 6 203 | Basket |
|
NOTE:
For diesel injection nozzles
|
|
| 5 = 13 6 205 | Mounting rail |
|
NOTE:
For fuel injectors - engine: M10, M20, M30, M40, M42, M43, M44,M M50, M52,M54, M60, M62, M70, M73, M88, N42, S14, S38, S50B30, S50B32, S50US, S52,
|
|
| 6 = 13 6 206 | Wiring harness |
| 3 6 202 | Special cleaner (R 60 L) 10 ltr. |
| 13 6 207 | Cleaning agent concentrate 1 ltr. |
|
NOTE:
Tunop 656
|
