13 6 050 Set of adapters for BMW DIS
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2003 BMW M5, 2003 BMW 540i, 2003 BMW 530i, 2003 BMW 525i, and 2002 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools
SET OF ADAPTERS FOR BMW DIS SPECIFICATION
| Note: | For measuring oil and fuel pressures |
|---|---|
| Engine: | M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47T2, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M70, M73, M88, N40, N42, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, W10, W11, W17 |
| Storage location: | A16, B16 |
| SI number: | 1 12 94 (859) |
| Order number: | 13 6 050 |

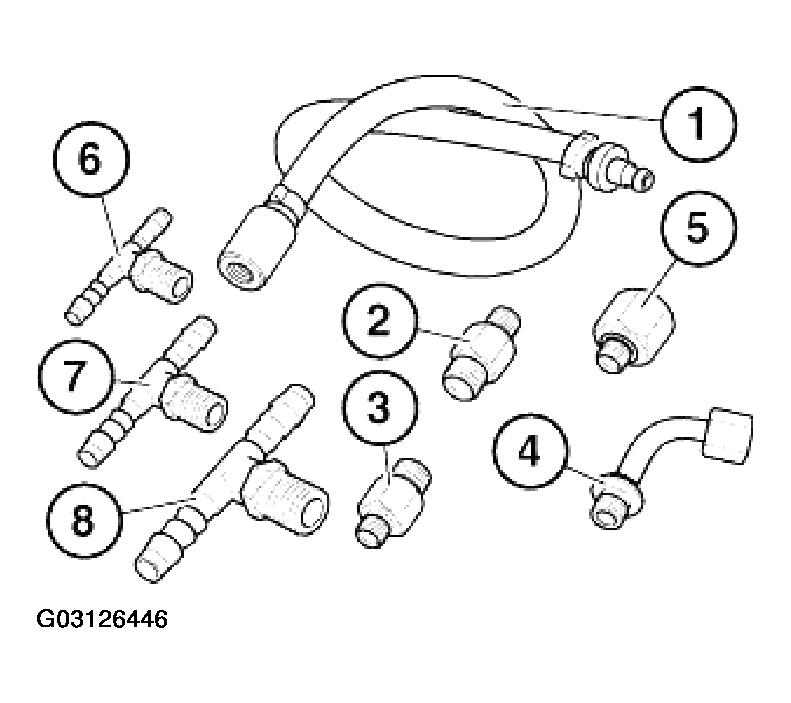

| Set of adapters for BMW DIS | |
| Consisting of: | |
| 1 = 13 6 051 | Connecting hose |
|
NOTE:
For connecting reducers 13 6 052, 13 6 053, 13 6 55 and adapters
|
|
| 11 4 050, 11 4 160, 11 4 170, 13 5 131 to BMW DIS | |
| 2 = 13 6 052 | Reducer |
|
NOTE:
For pipe elbows 24 0 023, 24 0 024, 24 0 140
|
|
| In conjunction with: 13 6 051 | |
| 3 = 13 6 053 | Reducer for adapter 16 1 300 |
| In conjunction with: 13 6 051 | |
| 4 = 13 6 054 | Pipe elbow |
| In conjunction with: 13 6 051, 11 4 050 | |
| 5 = 13 6 055 | Reducer for T-pieces 13 6 056 and 13 6 057 |
| In conjunction with: 13 6 051 | |
| 6 = 13 6 056 | T-piece for 6 mm dia. line |
| 7 = 13 6 057 | T-piece for 8 mm dia. line |
