13 5 280 Plugs for fuel lines
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2003 BMW M5, 2003 BMW 540i, 2003 BMW 530i, 2003 BMW 525i, and 2002 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
PLUGS FOR FUEL LINES SPECIFICATION
| Note: | For sealing off fuel lines when removing and installing engine - Applicable to M62 only fitted in E39 / M52 only fitted in E38 / S50B32 only fitted in E36 / N62 only fitted in E65 / M54 in E83. |
|---|---|
| Series: | E36, E38, E39, E46, E60, E61, E63, E64, E65, E66, E67, E83, E85, R50, R52, R53, RR1 |
| Engine: | M52, M54, M62, N40, N42, N62, N73, S50B32, W10, W11 |
| Storage location: | B16 |
| SI number: | 1 18 96(163) |
| Order number: | 13 5 280 |

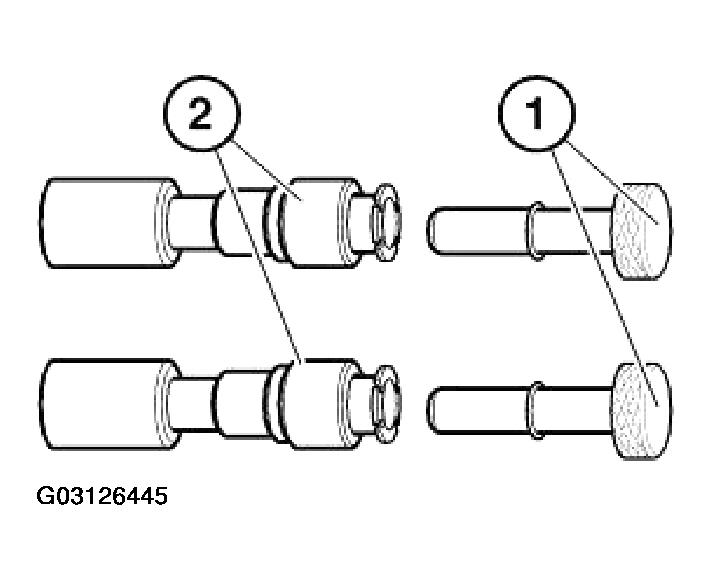

| Plugs for fuel lines | |
| Consisting of: | |
| 1 = 13 5 281 | Seal (2 x) |
|
NOTE:
For sealing quick couplings
|
|
| 2 =13 5 282 | Seal (2 x) |
|
NOTE:
For sealing fuel lines
|
