13 5 220 Adapter

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2003 BMW M5, 2003 BMW 540i, 2003 BMW 530i, 2003 BMW 525i, and 2002 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

ADAPTER SPECIFICATION

In conjunction with:	13 3 063 or 13 6 051
Note:	For pressure gauge 13 3 061 or BMW DIS for measuring fuel pressure at injection rail
Engine:	M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M70, M73, M88, N40, N42, N62, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, W10, W11, W17
Storage location:	C16
SI number:	1 06 95 (963)
Order number:	13 5 220
	Adapter
Consisting of:
1 = 13 5 221	Adapter
	NOTE: Engine: M43, M44, M52, M62
2 = 13 5 222	Coupling connector
	NOTE: For connecting DIS pressure sensor

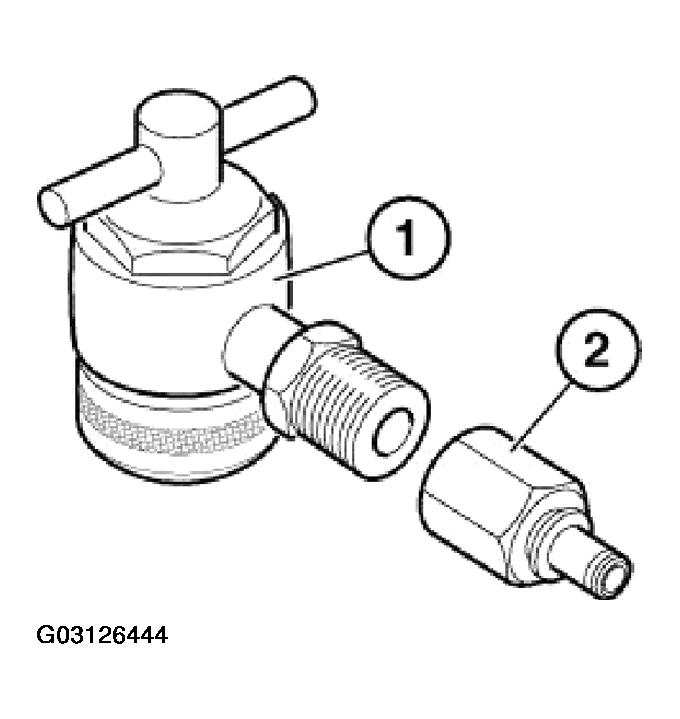

Fig 1: Identifying Adapter (Mechanical Tool)

Courtesy of BMW OF NORTH AMERICA, INC.
