FIXTURE SPECIFICATION
| Note: | For checking fuel pressure on K-Jetronic and L-Jetronic as well as oil pressure |
|---|---|
| Engine: | M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47T2, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M70, M73, M88, N40, N42, N45, N46, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, W10, W11, W17 |
| Order number: | 13 3 060 |

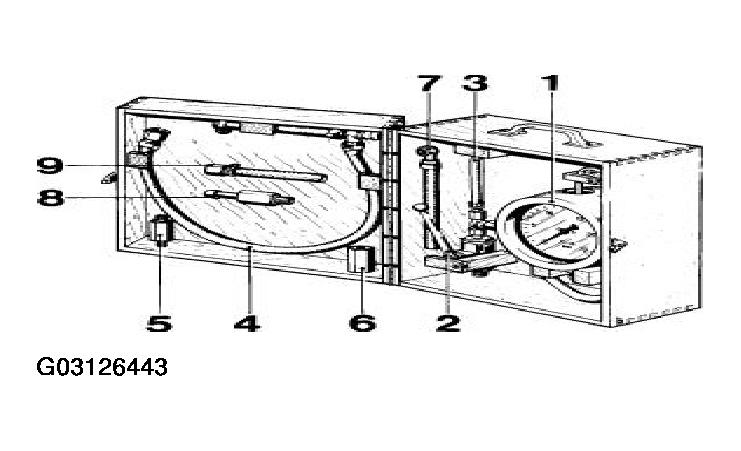

| Fixture | |
| Consisting of: | |
| 1 = 13 3 061 | Pressure gauge 0...25 bar |
| 2 = 13 3 062 | 2-way cock |
|
NOTE:
Engine: All, except S50, S54, N73
|
|
| 3 = 13 3 063 | Connecting lines (2 x) |
|
NOTE:
For fuel and oil pressure testing
|
|
| 4 = 13 3 064 | Connecting line |
|
NOTE:
Mit T-piece for L-Jetronic All except N73
|
|
| 5 = 13 3 065 | Connecting piece distributor |
|
NOTE:
All except N73
|
|
| 6 = 13 3 066 | Connecting piece warm-up sensor |
|
NOTE:
All except N73
|
|
| 7 = 13 3 067 | Connecting hose |
|
NOTE:
For checking fuel pump delivery All except N73
|
|
| In conjunction with: 13 3 020 | |
| 8 = 13 3 068 | Connecting piece distributor |
|
NOTE:
All except N73
|
|
| In conjunction with: BMW SERVICE TESTER | |
| 9 = 13 3 069 | Connecting piece |
|
NOTE:
For warm-up sensor with hose all except N73
|
|
| In conjunction with: BMW SERVICE TESTER |
